Removing Trim Panel Under Dashboard

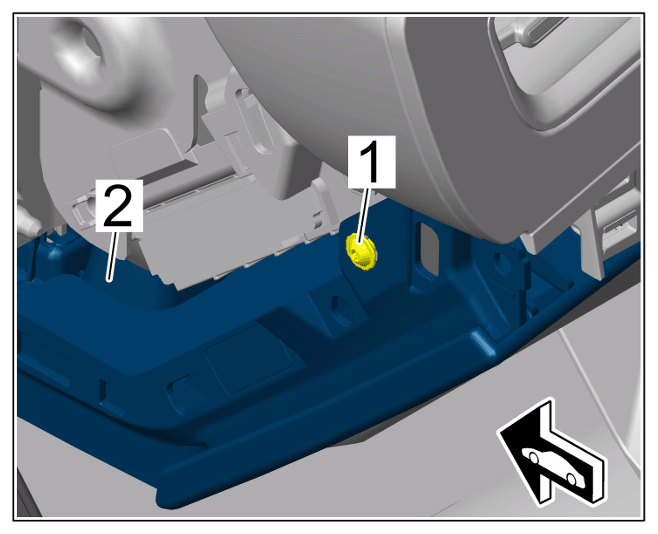

  1. Unscrew side screw -1-  from trim panel under dashboard -2-  .
    G15564951Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw

  2. Loosen trim panel under dashboard.

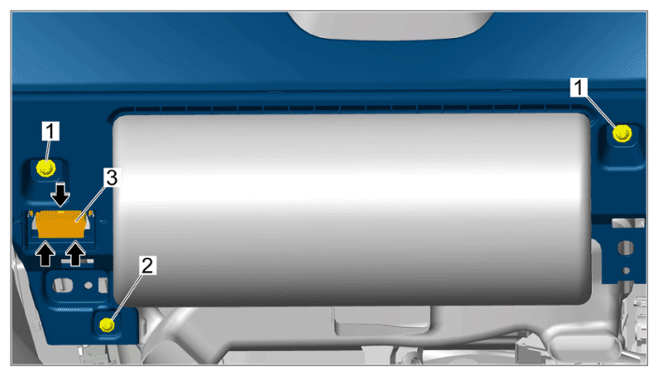

    1. 2.1 Unscrew and remove screws -1-  .
    2. 2.2 Unscrew bottom screw -2-  .
    3. 2.3 Release and pull off electric plug connection -3-  (-Arrows-  ).
    G15564952Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

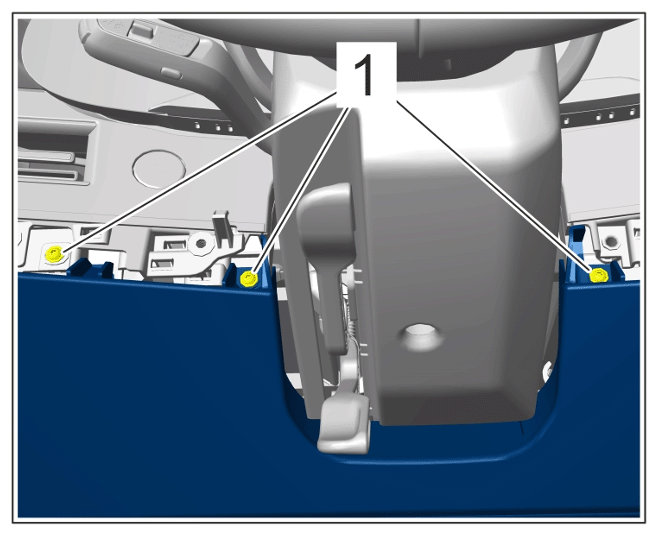

  3. Unscrew and remove screws -1-  .
    G15564953Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

  4. Unclip trim panel under dashboard and remove it.
