Removing Dashboard

WARNING: Improper handling of airbag units

Triggering of airbag unit.
System faults can occur.
→ Switch off ignition and move remote control (hand-held transmitter) at least 2 metres away from the vehicle.

→ A voltage supply (e.g. battery charger) must not be connected to the external power supply/jump-lead starting terminals.

→ Disconnect the battery and insulate the ground strap so that all contact with a ground carrier is avoided.

→ Wait 1 minute after disconnecting the battery.

→ Only pull off connector on the triggering unit after the waiting time has elapsed.

→ Make sure that no foreign objects are located in front of the airbag unit during installation.

→ Replace damaged parts during removal.

→ Always position airbag units so that the blow-out opening is facing upwards, e.g. crest on driver's airbag.

→ Do not place any objects on the airbag units.

→ If removed for an extended period, the airbag units must be stored in a safe place.

→ Airbag units must not come into contact with grease, oil, detergents, liquids or similar substances.

→ Do not expose airbag units to temperatures above 90°.

→ Do not remove the short-circuit spring on the plug contacts.

→ Triggering and preparations may only be carried out by skilled staff, supervised by a second responsible person.

→ Before disposal, the airbag unit must be rendered harmless by triggering it electrically while observing all precautionary measures, thereby preventing it from being used incorrectly.

WARNING: Incorrect handling of safety bolts

Danger of injury
Loss of torque
→ Always use new fastening screws and nuts following removal.

→ Observe specified tightening torques.

→ Carry out a visual inspection of all re-used parts.

Information

The help of another person is required.

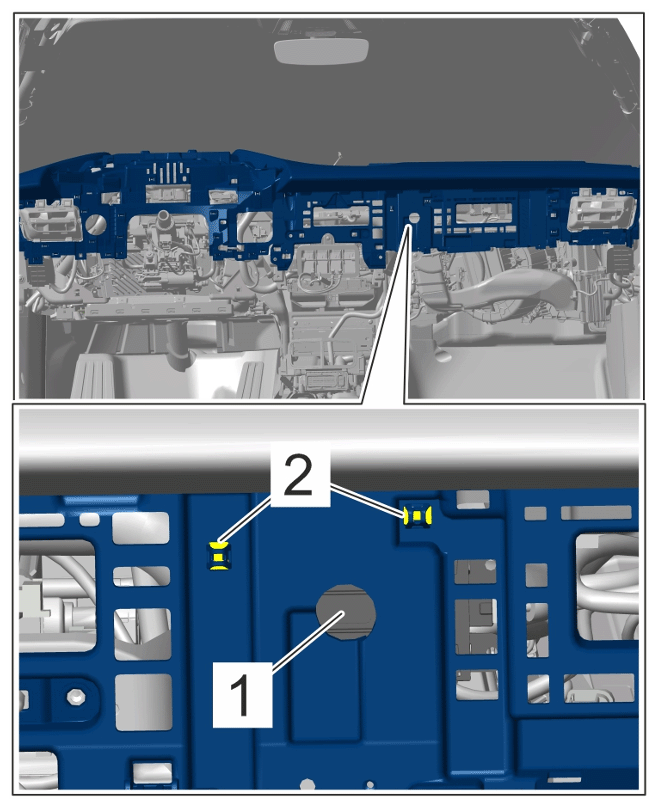

Unclip clip -1- and feed out the electric line -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clip

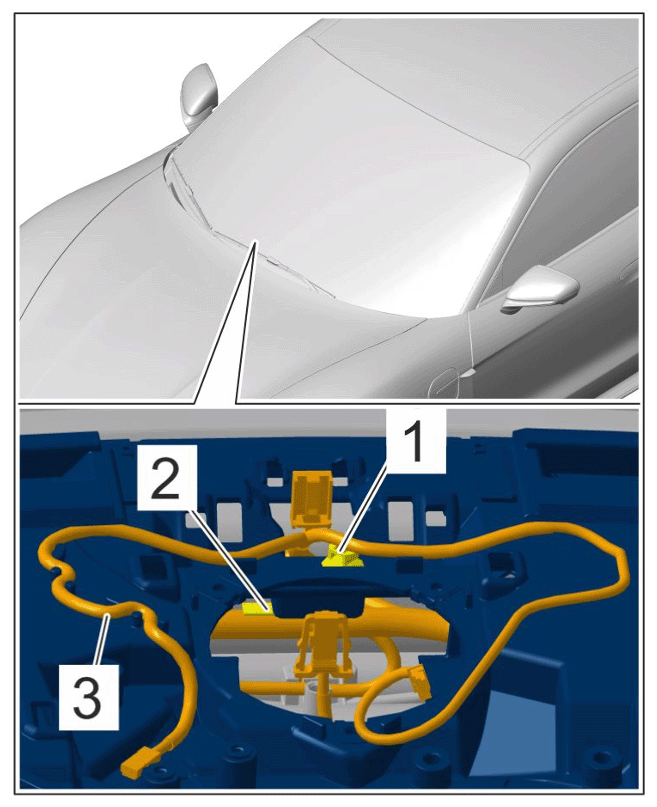

Unclip clip -1- and -2- and release the electric line -3- from the guide.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clips
Unscrew screw -2- and feed out electric line -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

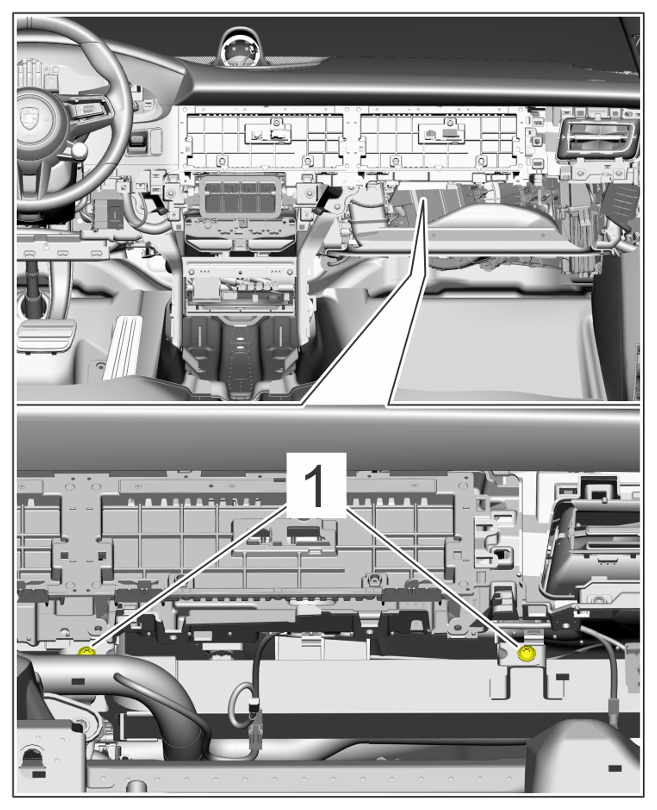

Unscrew screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

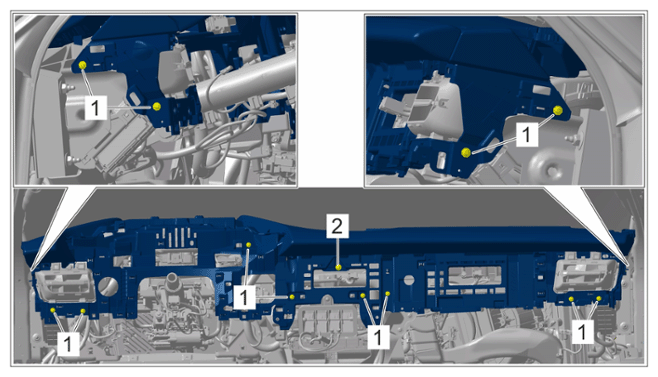

Unscrew screws -1- and screw -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

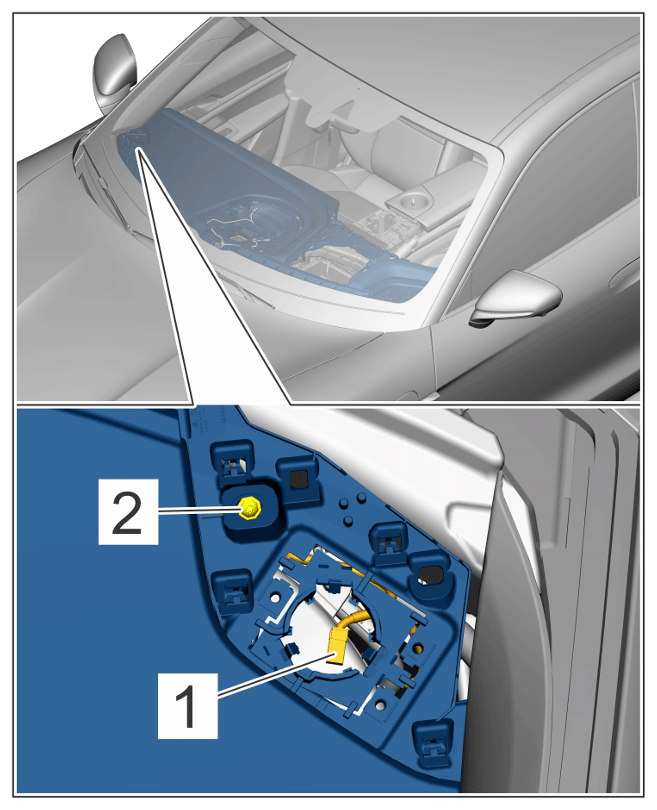

Unclip clips -2- and set ioniser -1- aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ioniser

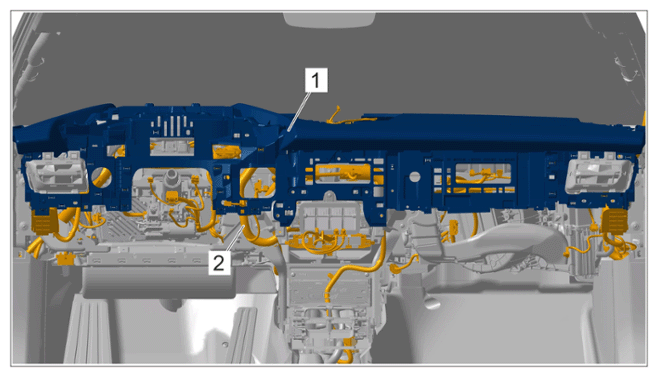

Remove dashboard -1- on the passenger's side and feed out electric lines -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Dashboard
