Removing Dashboard Trim Panel

Information

For additional 3D information, see

> 701619 REMOVING AND INSTALLING DASHBOARD TRIM PANEL

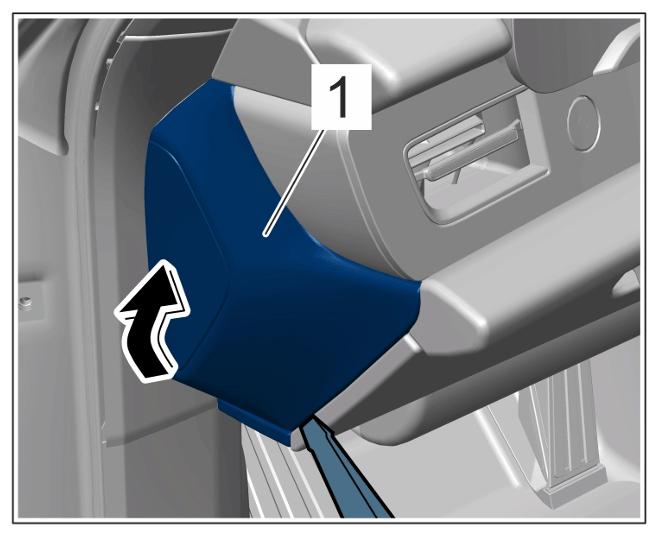

1. Unclip dashboard trim panel -1-  by pushing it upwards from below using a plastic wedge -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Dashboard trim panel

2. Remove dashboard trim panel.
