Technical Values

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

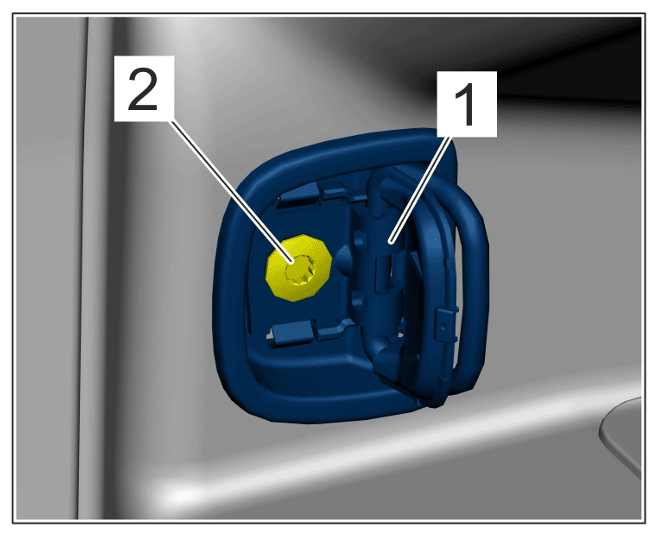

Anchoring system eyelet in luggage compartment	Item 2	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for anchoring system eyelet

Location	Description	Type	Basic value

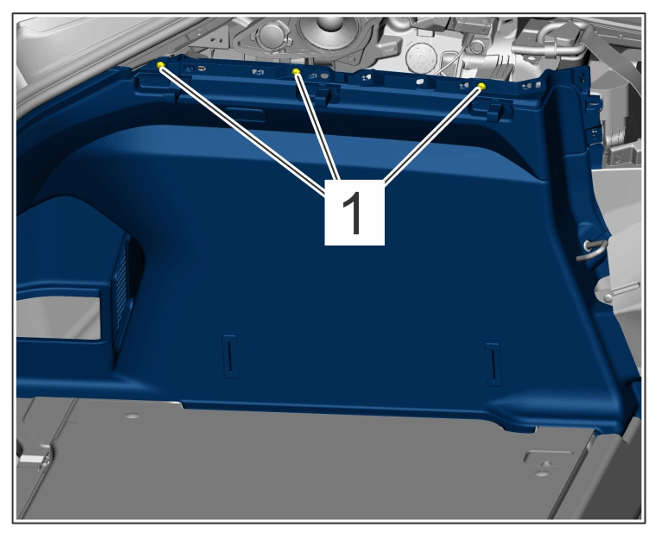

Screws for luggage compartment trim panel (luggage compartment cover) to bracket	Item 1	Tightening torque	2 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

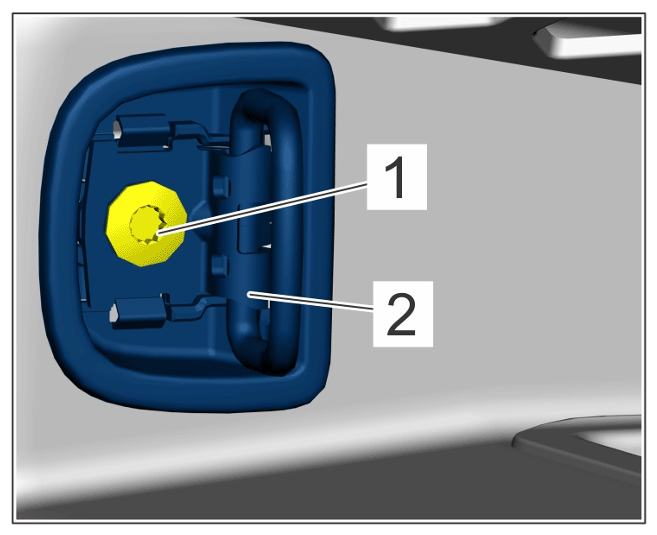

Screw for anchoring system eyelet	Item 1	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for anchoring system eyelet
