Removing (Side) Luggage Compartment Trim Panel (Luggage Compartment Cover)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

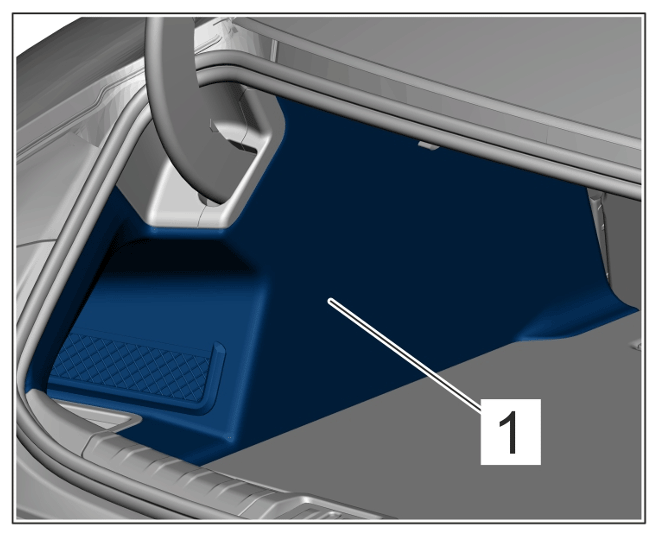

Luggage compartment trim panel (luggage compartment cover) at the sides

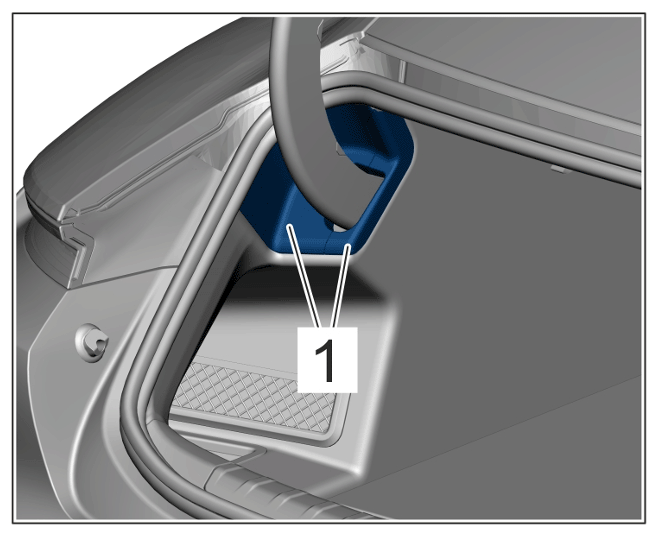

1. 4.1 Remove anchoring system eyelet -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

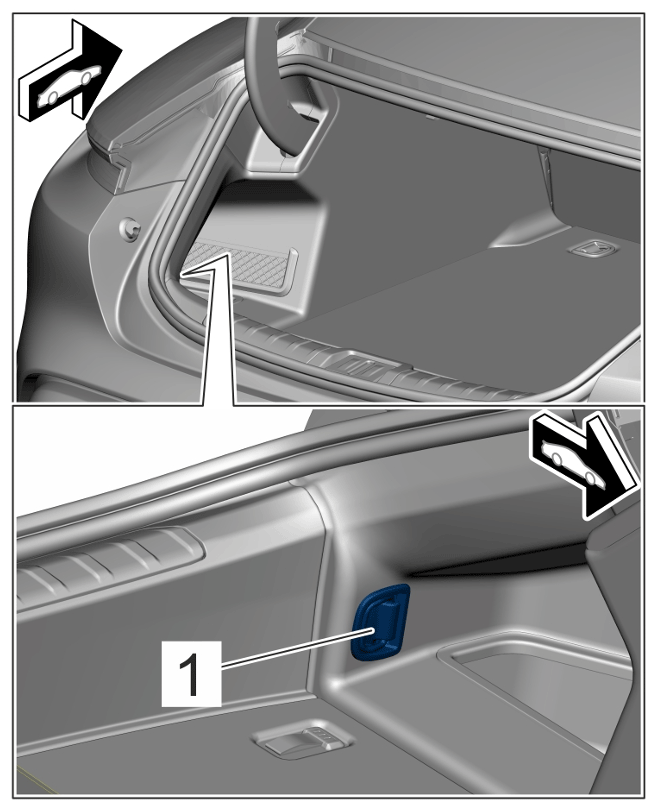

   Anchoring system eyelet

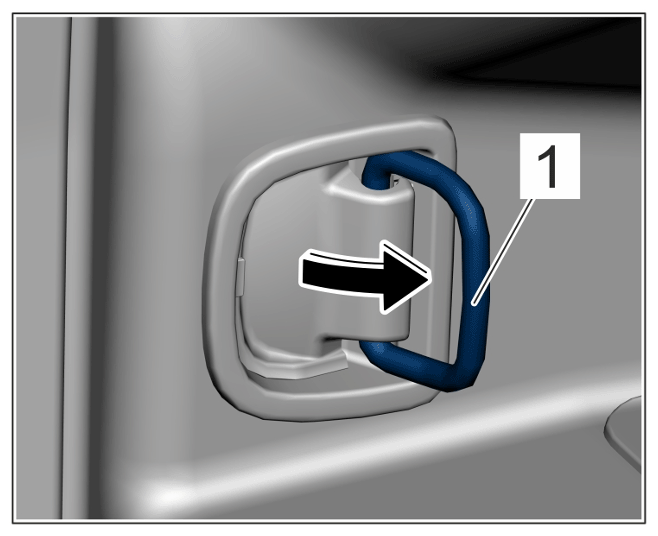

   1. 4.1.1 Open metal bracket for anchoring system eyelet -1-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

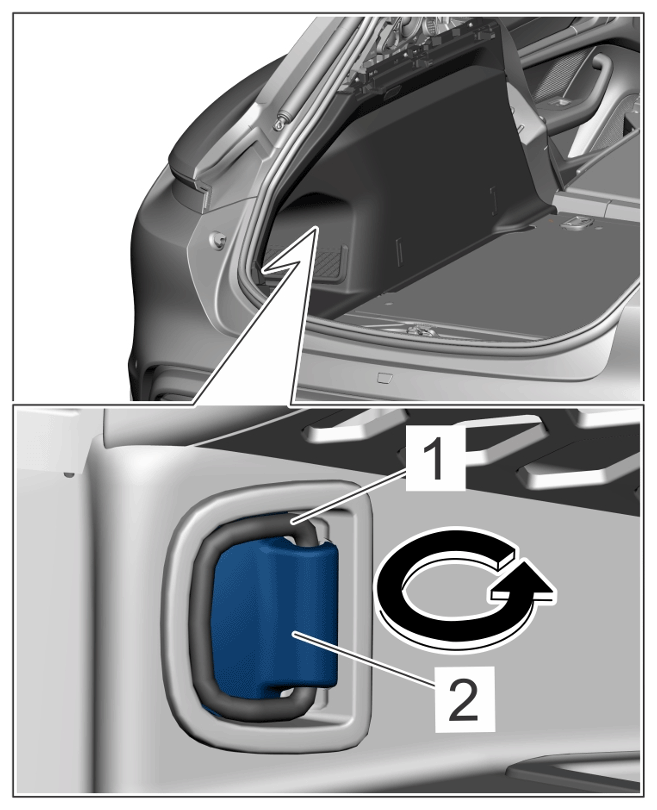

      Metal bracket for anchoring system eyelet

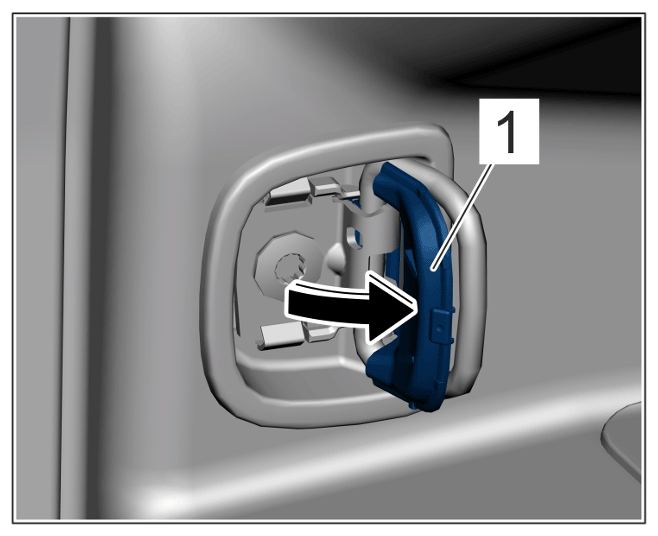

   2. 4.1.2 Open cover on anchoring system eyelets -1-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Cover on anchoring system eyelet

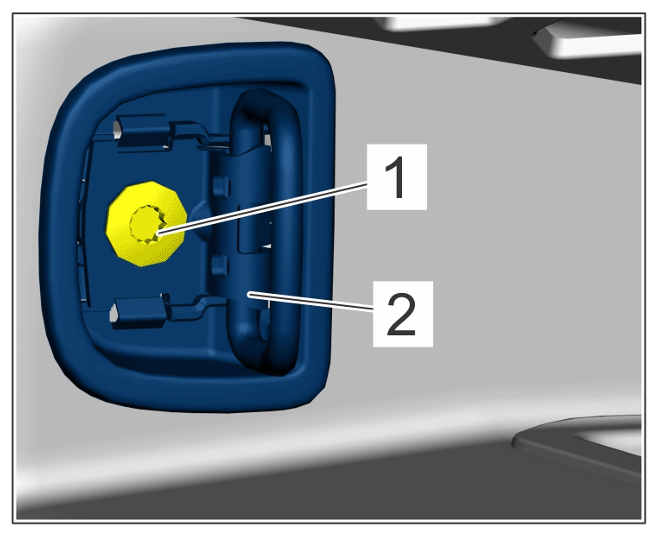

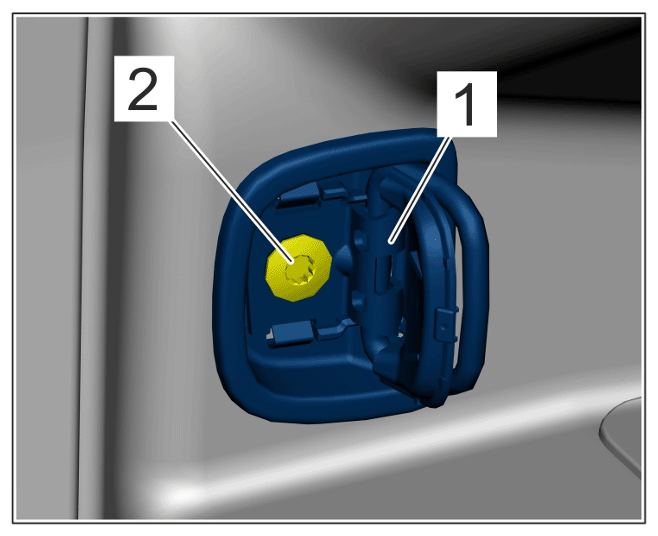

   3. 4.1.3 Loosen screw -2-  and remove anchoring system eyelet -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

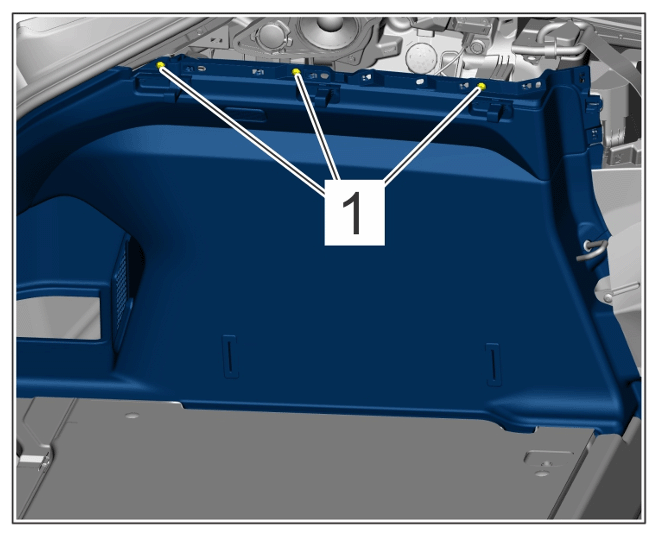

   Screws for anchoring system eyelet

2. 4.2 Remove (side) luggage compartment trim panel (luggage compartment cover) -1-  .

> 905819 REMOVING AND INSTALLING PLUG SOCKET

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Anchoring system eyelet

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for anchoring system eyelet

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bolts

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

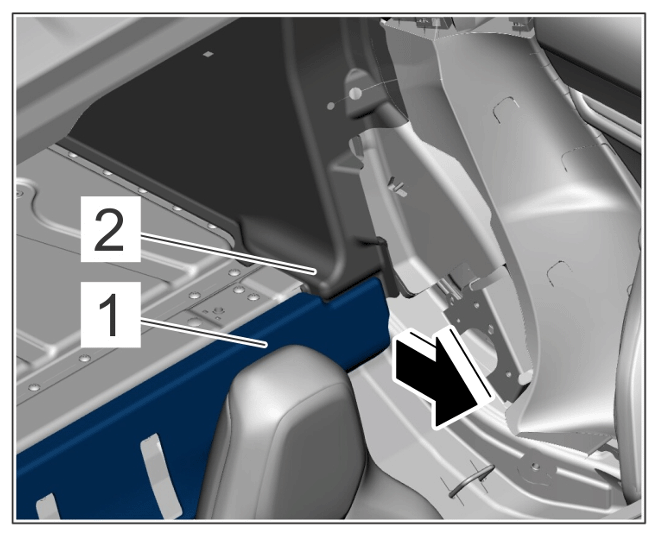

Side trim panel

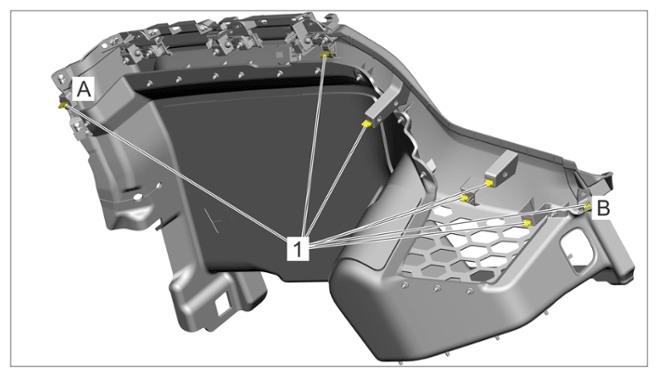

1. 6.1 Unclip clips -1-  from -A-  to -B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

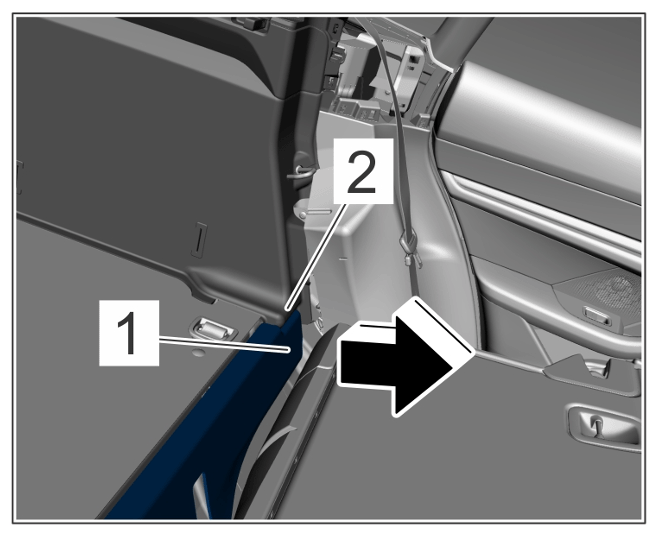

   Clips

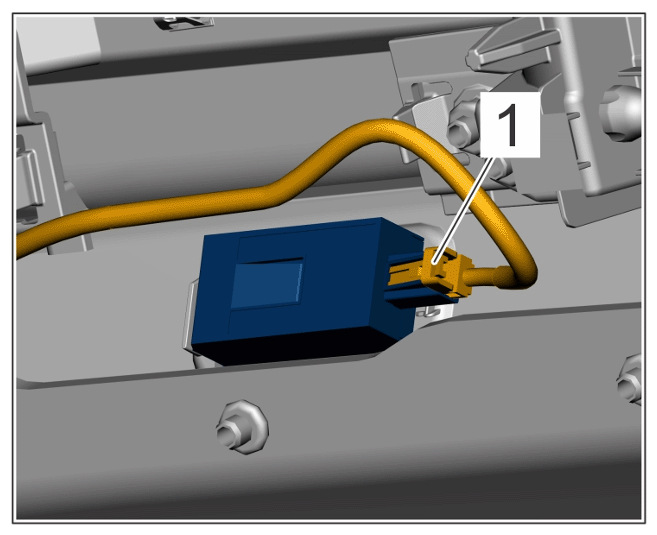

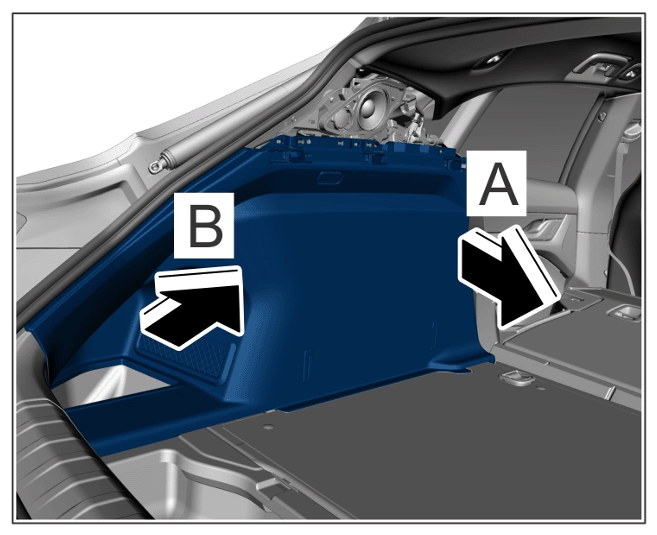

2. 6.2 Swing out the trunk cover (side) in the direction of -Arrow A-  .

   Then swing out the trunk cover (side) in the direction of -Arrow B-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Plug connection
