Removing Front Trim Panel (Engine Compartment)

Information

Pulling the clips manually may irreversibly deform the component.

1. Move a suitable assembly wedge -3-  between the front trim panel (engine compartment) -1-  and the wing in direction -arrow A-  to find the clips -2-  . Unclip clips -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Font trim panel (engine compartment), side clips

2. Pull front trim panel (engine compartment) -1-  in direction -arrow A-  to release the clips -2-  . Move front panel (engine compartment) -1-  backwards and upwards -arrow B-  to remove.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

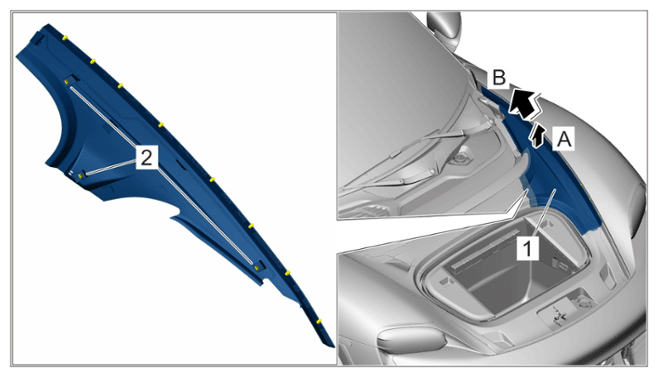

   Font trim panel (engine compartment), bottom clips
