Removing Windscreen Projection Control Unit

NOTE: NOTIFICATION
Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

Information

Always comply with the regulations for handling ESD-sensitive components!

Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche.
The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed.
The electrical pins or plug contacts must not be touched.

Remove windscreen projection control unit cover.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

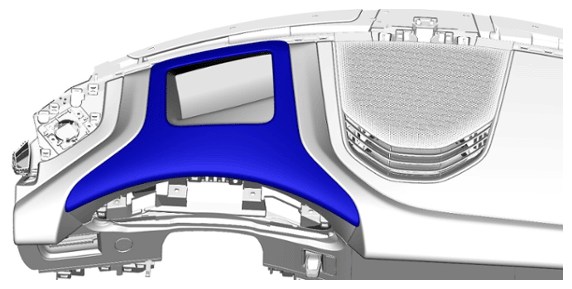

Windscreen projection control unit cover

1.2 Press retaining lugs back slightly and remove them from the guide.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

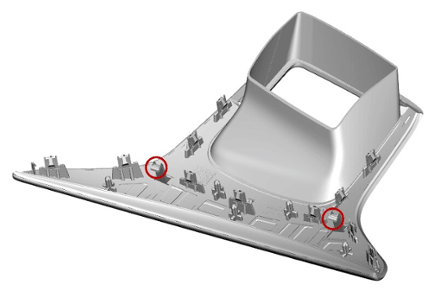

Windscreen projection control unit cover

Unscrew screws on windscreen projection control unit -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

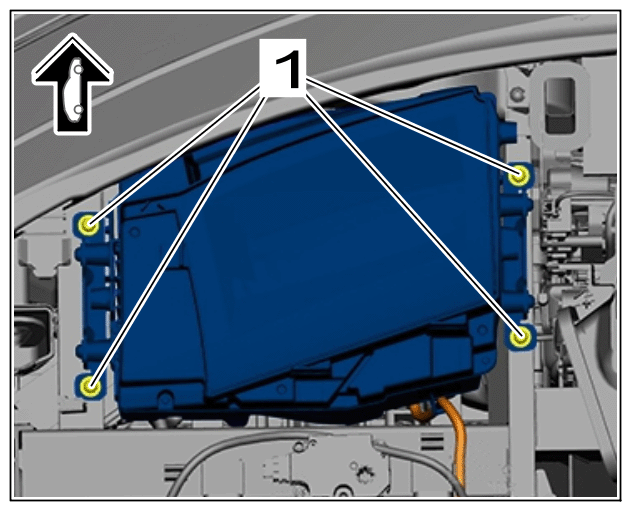

Removing windscreen projection control unit

Disconnect windscreen projection control unit and remove it.

3.1 Guide wiring harness for windscreen projection control unit out of the holder -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

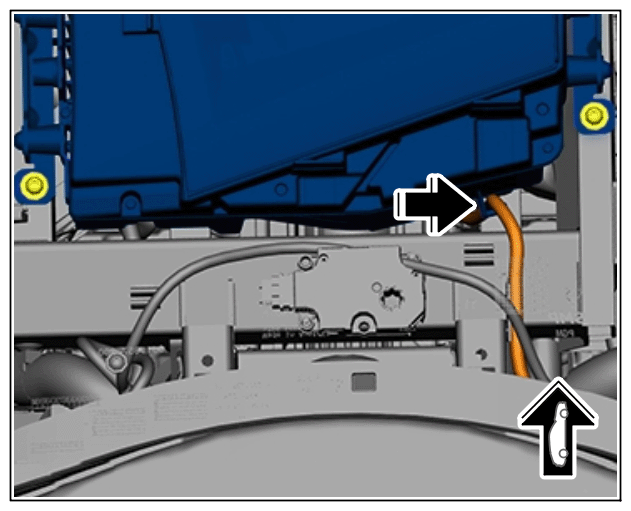

Wiring harness for windscreen projection control unit

3.2 Lift windscreen projection control unit until the electric plug connection is accessible.

3.3 Release -Arrow- and disconnect electric plug connection windscreen projection control unit.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

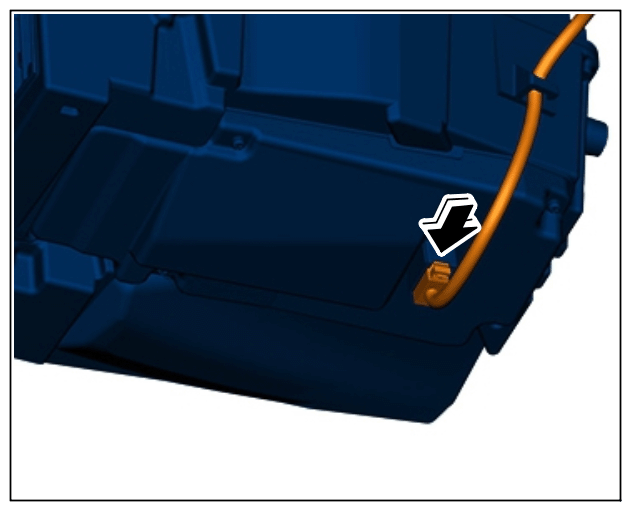

Electric plug connection for windscreen projection control unit
