Removing PVTS Antenna

NOTE: NOTIFICATION
Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

Release and disconnect electric plug connection for PVTS antenna -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

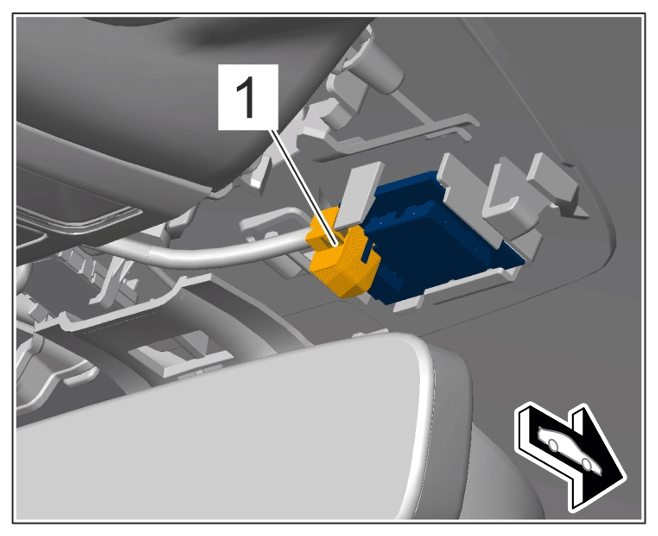

Electric plug connection for PVTS antenna
Disconnect PVTS antenna -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

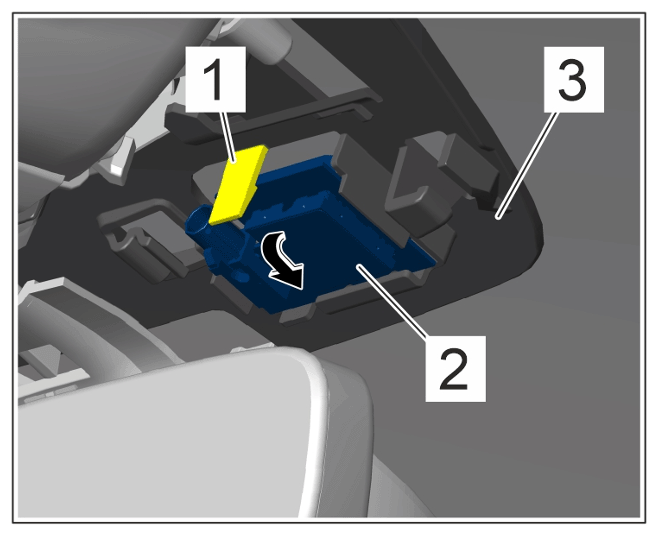

PVTS antenna
1. 2.1 Release locking lugs -1- .
2. 2.2 Guide PVTS antenna -2- out of holder -3- (-arrow- ).
Remove PVTS antenna.
