Removing Plug Socket In Luggage Compartment

NOTE: NOTIFICATION
Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

Remove plug socket in luggage compartment -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

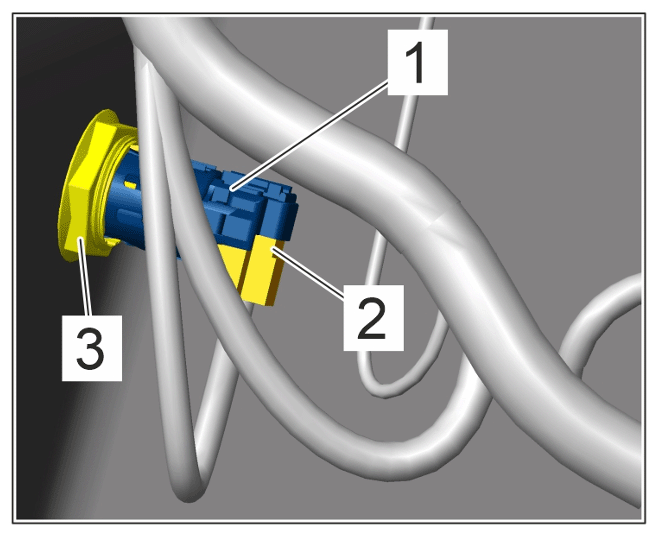

Plug socket in luggage compartment
1. 1.1 Release and unplug electric plug connection -2- .
2. 1.2 Use an open-ended wrench to counter the plastic nut -3- behind the trim panel and unscrew plug socket -1- .
3. 1.3 Remove plug socket in luggage compartment -1- .
