Removing Plug Socket In Front Centre Console

NOTE: NOTIFICATION
Voltage peaks
  • Risk of damage to electrical load or to the control unit

    → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

    → Switch off electrical loads before disconnecting or removing them.

  1. Open the cover of the plug socket and press plug socket -1-  on the underside outwards using a screwdriver -Arrow A-  .

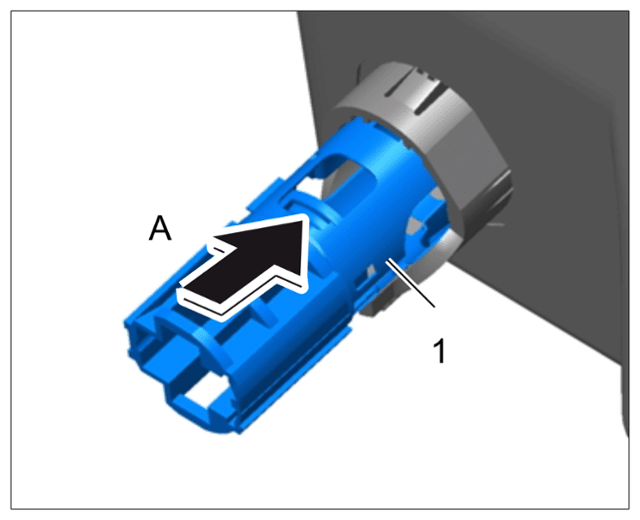

    G15566182Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Plug socket in centre console storage bin

  2. Release trim -2-Arrow B-  and press it outwards -Arrow C-  .

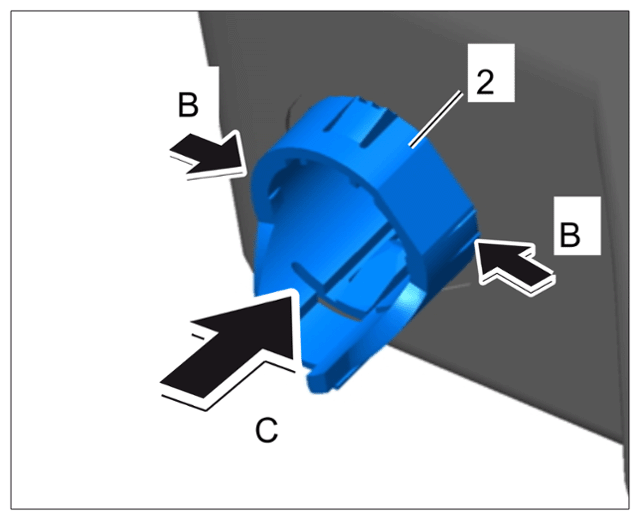

    G15566183Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Trim around plug socket in centre console.
