Removing Horn

  1. Unscrew nut -1-  on horn.

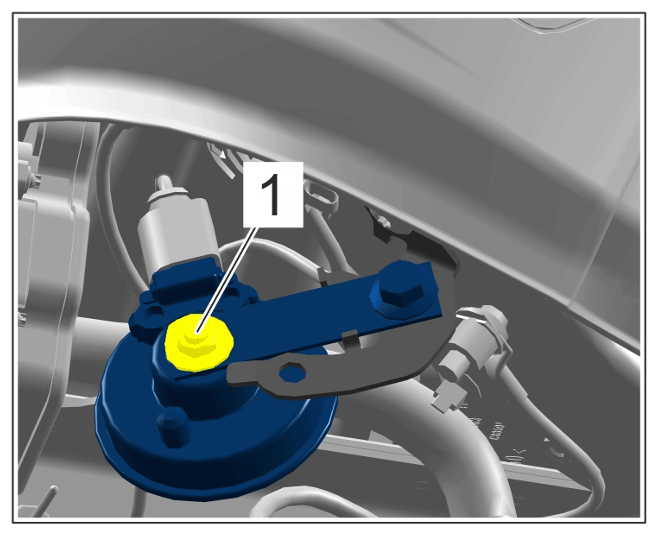

    G15566179Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Nut

  2. Remove horn -1-  .
    1. 2.1  Release and unplug electric plug connection -2-  .
    2. 2.2  Unscrew screw -3-  .
    3. 2.3  Remove horn -1-  .

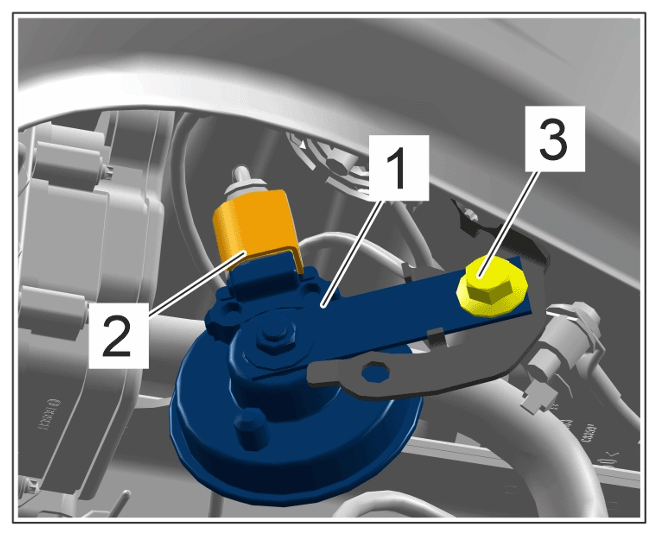

      G15566180Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Horn
