Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2

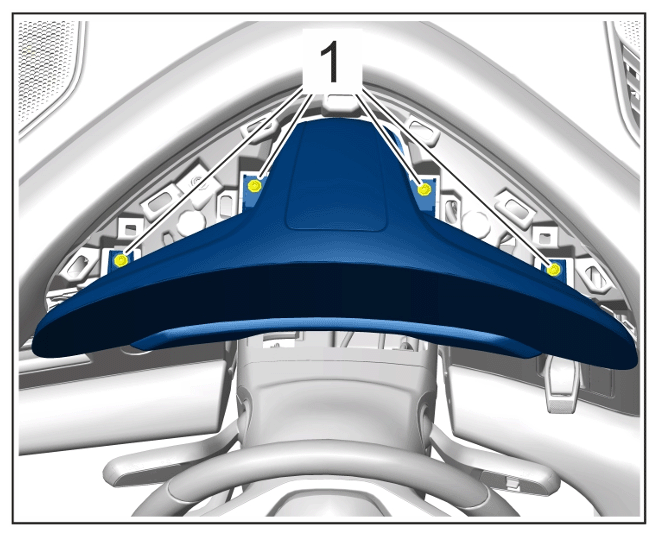

Screws securing instrument cluster to dashboard Item 1 Tightening torque 1.5 Nm (1 ftlb.)
G15566156Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
