Subsequent Work

For vehicles with optional windscreen projection, continue with Step 1.

For vehicles without optional windscreen projection, continue with Step  3.

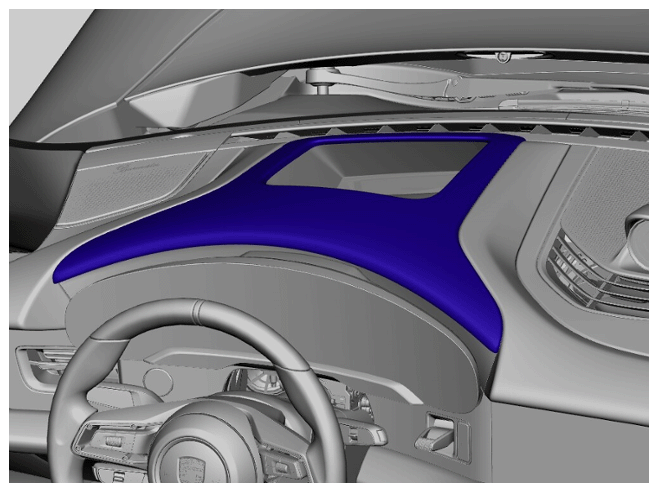

1. Clip in instrument cluster cover.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Instrument cluster cover

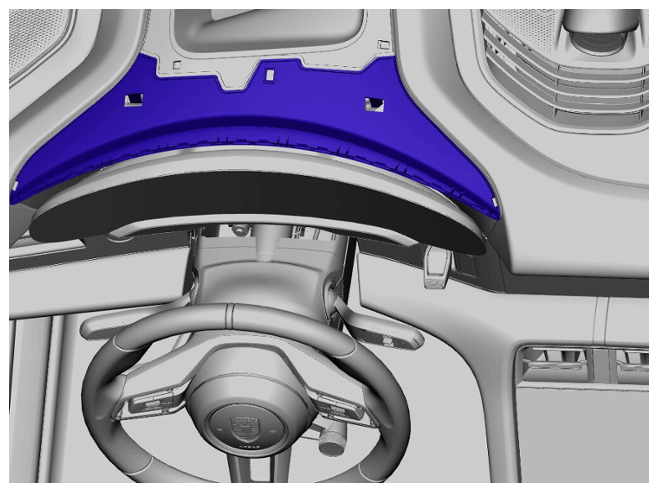

2. Clip in windscreen projection cover.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Windscreen projection cover

3. Insert fuse for instrument cluster.
4. When replacing the instrument cluster.

   > 902555 REPLACING INSTRUMENT CLUSTER
