Removing Instrument Cluster

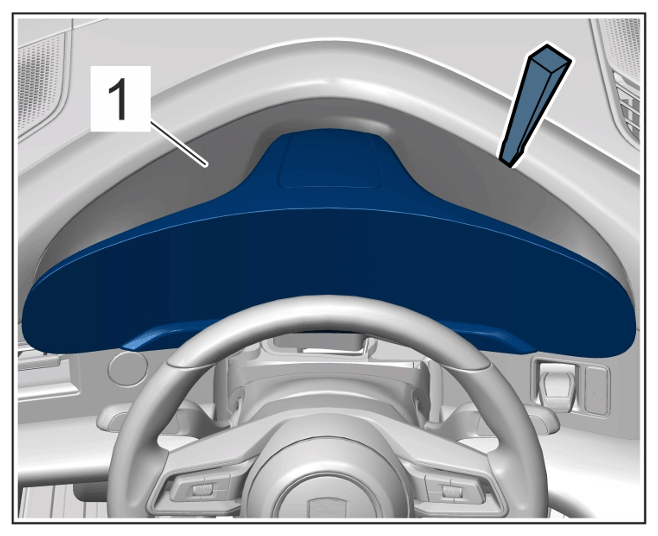

  1. Unclip trim -1-  using a plastic wedge.
    G15566162Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover

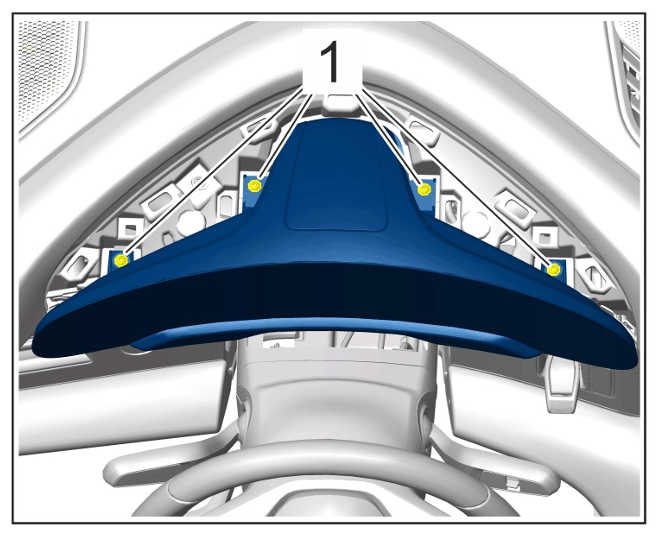

  2. Unscrew and remove screws -1-  .
    G15566163Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

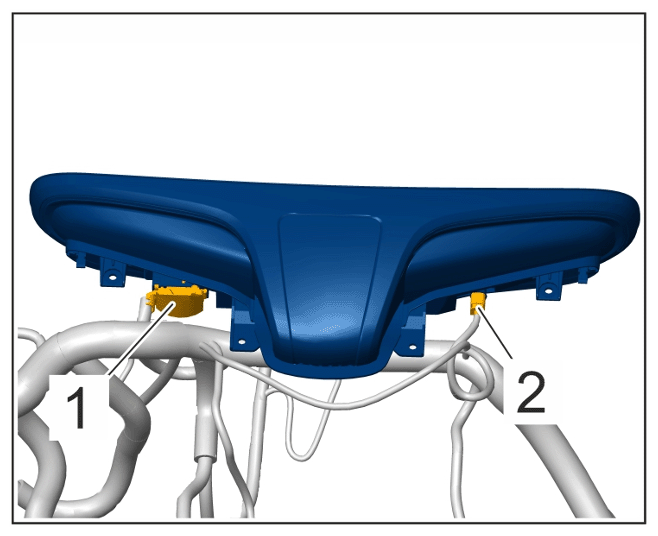

  3. Release and disconnect electric plug connection -1-  and -2-  .
    G15566164Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  4. Remove instrument cluster.
