Removing Additional Instrument (Stopwatch)

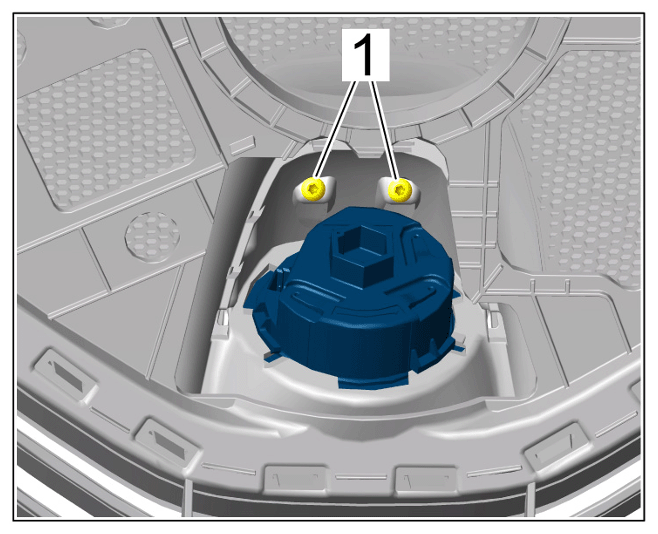

  1. Unscrew screws -1-  from the cowl.
    G15566153Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

    Information

    Do not turn the stopwatch surround.

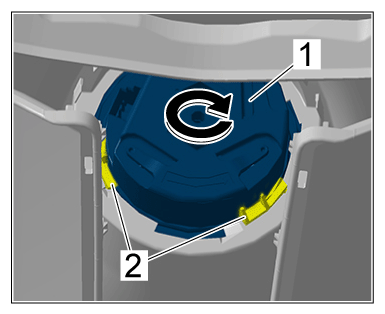

  2. Turn additional instrument (stopwatch) -1-  to the right -arrow-  and remove it from the bracket -2-  .
    G15566154Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Retaining lugs for stopwatch

  3. Remove additional instrument (stopwatch) from front loudspeaker trim panel (dashboard) at the centre.
