Removing Aux. Brake Light
Information
When removing and installing the additional brake light, make sure not to apply increased pressure on the rear window.
- Removal: Lift the additional brake light slightly off the rear window as described and slide it to the rear evenly without jerking it.
- Installation: Carefully slide the additional brake light onto the mounting points as described without jerking it.

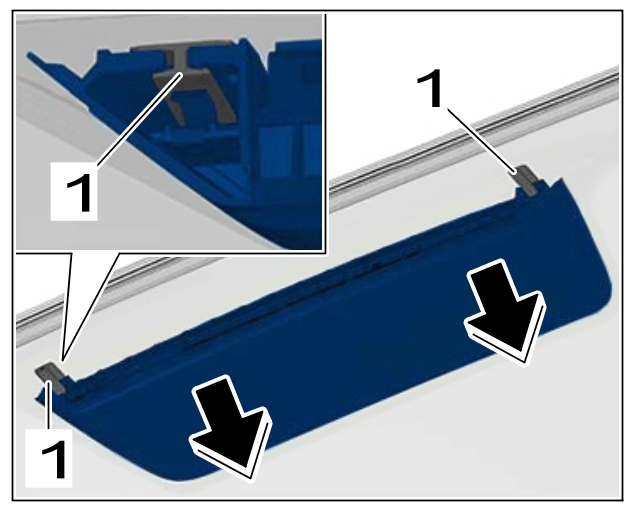

- Lift the additional brake light slightly off the rear window at the centre and carefully/slowly slide it to the rear (along the rear window) from the two mounting points -1-
.
Remove additional brake light by pulling it to the rear.
Do not remove additional brake light by pulling it downwards.
Mounting points for additional brake light

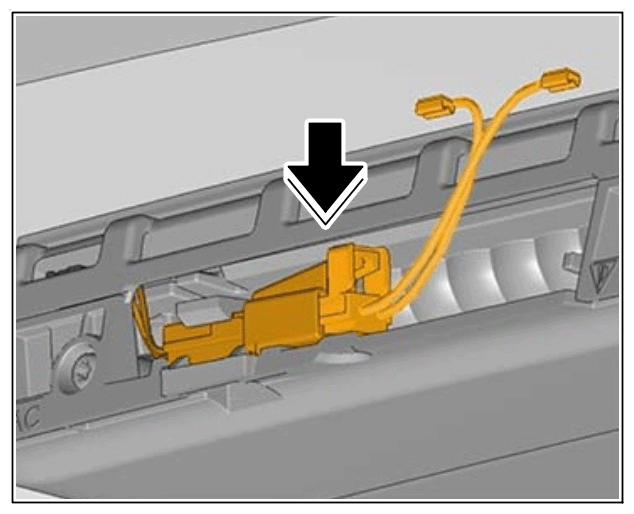

- Release electric plug connection for additional brake light Arrow
and disconnect it.
Electric plug connection
