Installing Aux. Brake Light
- Connect electric plug connection.

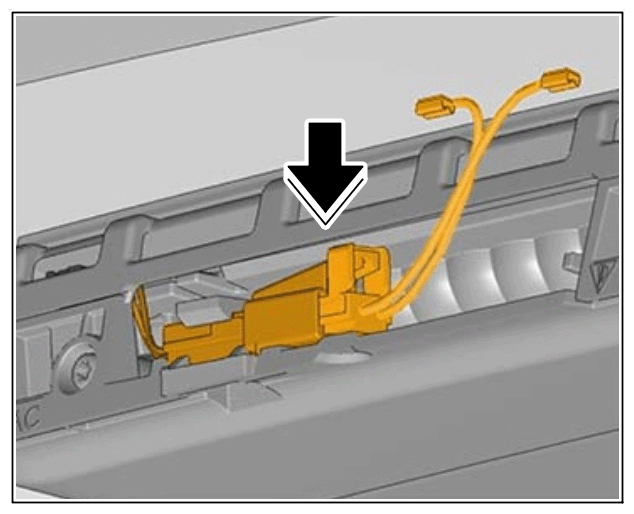

Electric plug connection
The electric plug connection must engage securely -Arrow- .
Insert electric plug connection into the receptacle in the additional brake light and engage it.
Information
When removing and installing the additional brake light, make sure not to apply increased pressure on the rear window.
- Removal: Lift the additional brake light slightly off the rear window as described and slide it to the rear evenly without jerking it.
- Installation: Carefully slide the additional brake light onto the mounting points as described without jerking it.

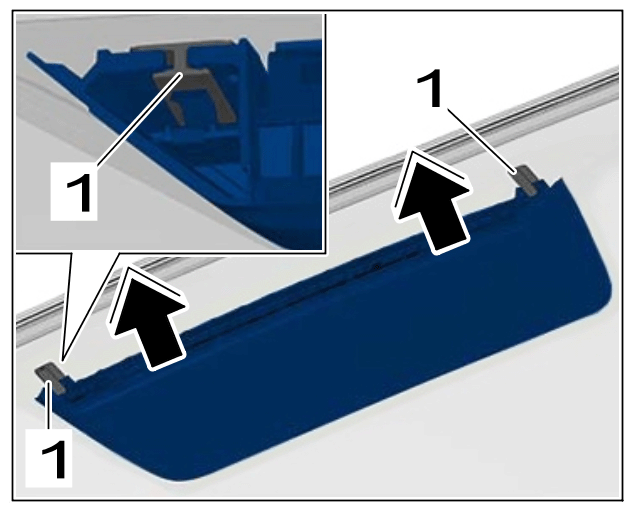

- Position additional brake light in front of the mounting points -1-
on the rear window and carefully slide the additional brake light along the rear window as far as it will go onto the mounting points -1-
.
Installing additional brake light
