Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Screw securing clamp to steering column control stalk Item 3 Tightening torque 6 Nm (4.5 ftlb.)

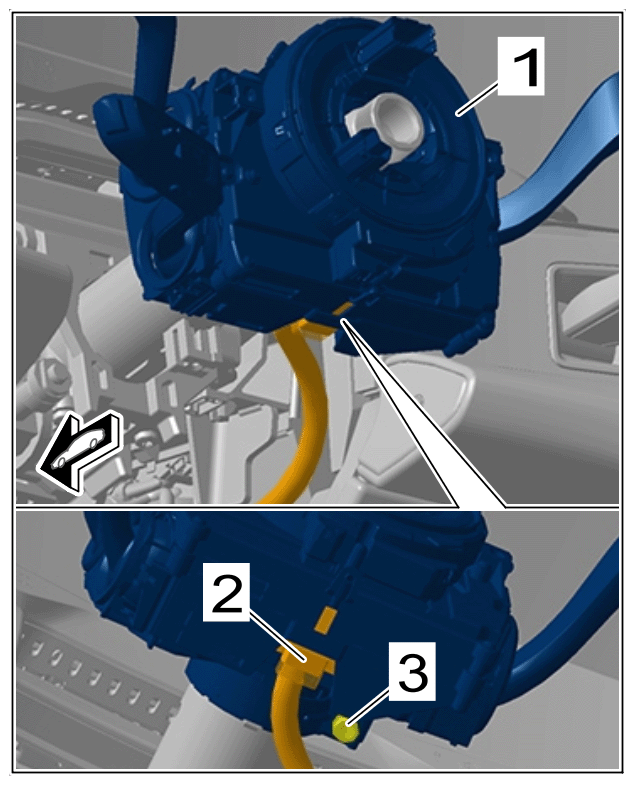

G15566739Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Steering-column switch
