Removing Tail Light In Rear Light

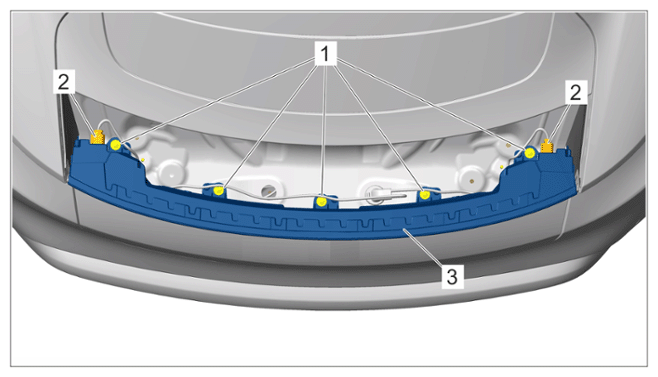

  1. Loosen tail light in rear light -3-  .
    1. 1.1  Remove screws -1-  .
    2. 1.2  Release and unplug electric plug connections -2-  .
      G15566725Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Screws

  2. Open the rear lid.

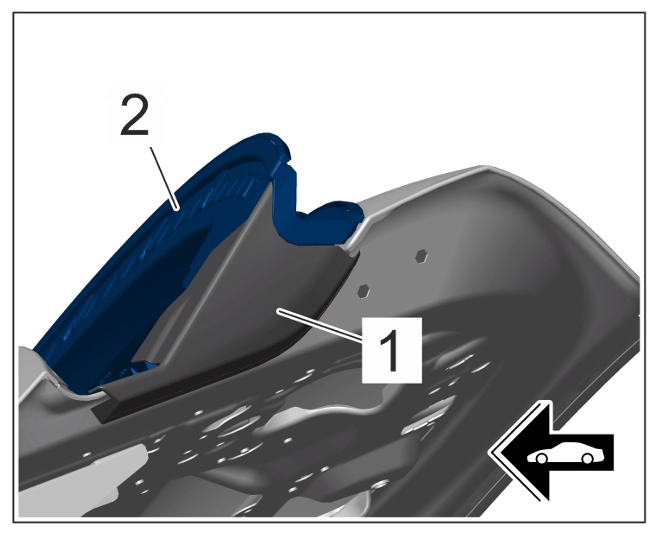

  3. Unclip cover -1-  on tail light in rear light -2-  .
    G15566726Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover

  4. Remove tail light in rear light.
