Removing Rear Light

Open rear lid.

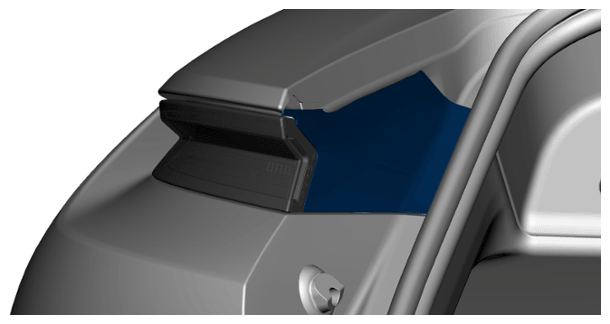

Unclip cover from tail light.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tail light cover

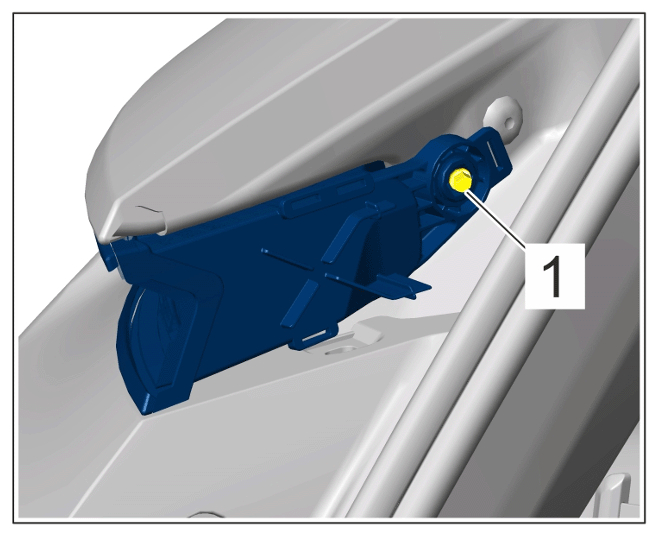

Unscrew screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

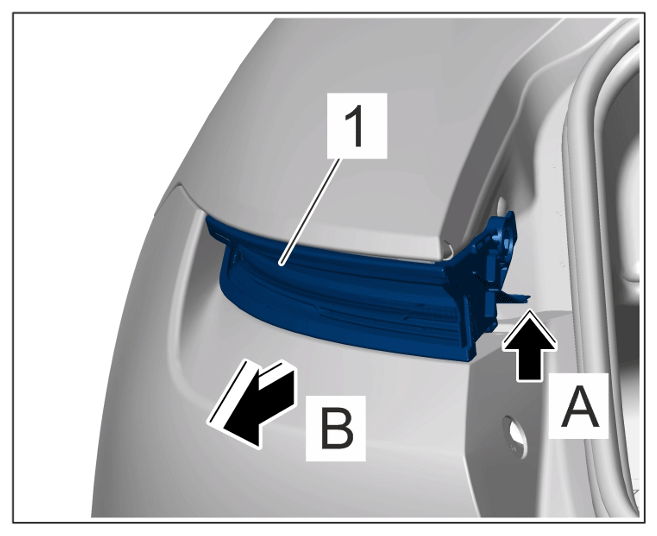

Pull out headlight -1-arrow A- and -Arrow B- until the electric plug connection is accessible.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear light

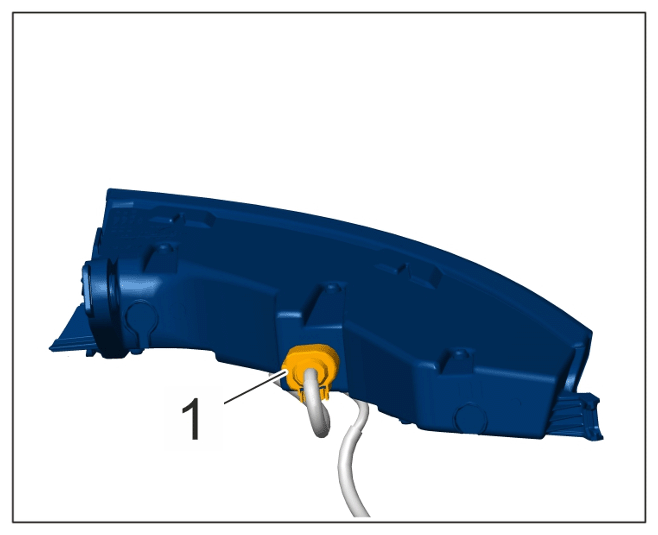

Release electric plug connection -1- and disconnect it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection
Remove rear light.
