Removing Headlights

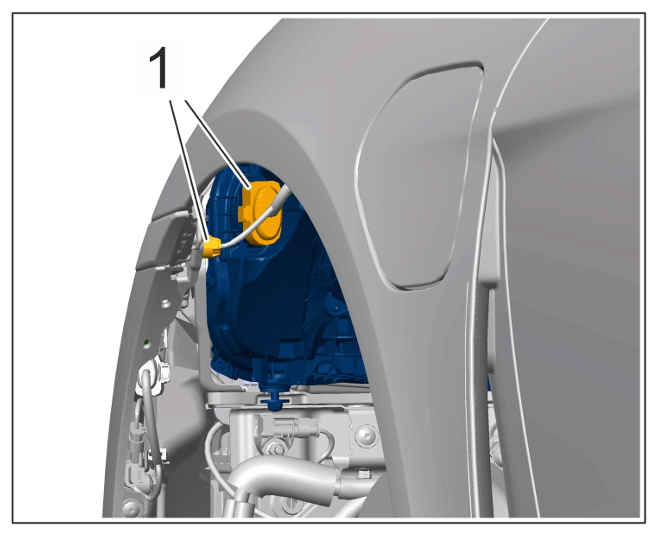

  1. Release and unplug electric plug connections -1-  .
    G15566706Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections

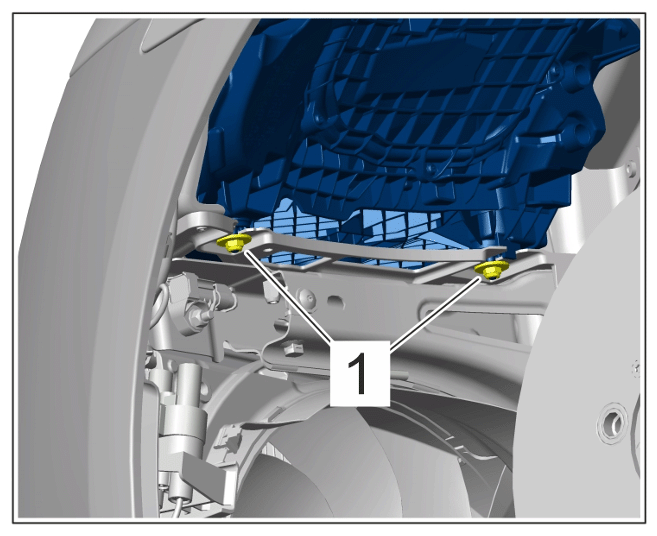

  2. Unscrew and remove screws -1-  .
    G15566707Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

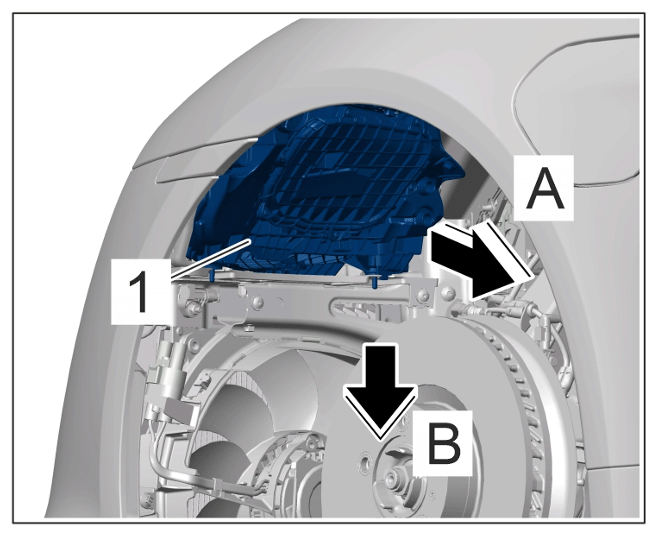

  3. Release headlight -1-  (-arrow A-  ) and remove it -arrow B-  .
    G15566708Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Headlight
