Installing Connect Web Apps (EURASIAN Customs Union Only)

Information

The central computer software update is performed using a USB storage medium. The software version, which is specific to the Eurasian customs union, must be downloaded  using the software tool PiUS  (Porsche integrated Update Service) and installed  on a blank USB storage medium.

Pay particular attention  to the following:

• The USB storage medium USB Type A+C 32 GB with the part number V04014999WW000  must be used for installing the Connect web apps.
• To use the software tool, one  blank or re-writable USB storage medium is required for each  individual software.

The software mentioned here must only  be used on vehicles in the Eurasian customs union  . Damage to the control unit cannot be ruled out if the software is used on other vehicles.

You will find further information on how to install and use the PiUS software tool in the PPN portal under * PiUS (Porsche integrated Update Service) goes live  *.

Information

The terms "Ignition on" and "Starting engine" are re-defined for fully electric vehicles (battery electric vehicles - BEV).

Establishing operational readiness/Ignition on:

Prerequisites for establishing operational readiness: High-voltage battery is sufficiently charged, remove vehicle charging cable from the vehicle charge port, put driver's key in the emergency start tray.

Establishing operational readiness automatically: Get into the vehicle and close the driver's door. The driver's key is recognized inside the vehicle. Operational readiness is established.

Establishing operational readiness manually: Press Start/Stop switch. The driver's key is recognized inside the vehicle. Operational readiness is established.

Establishing operational readiness/Starting engine:

Establish operational readiness and engage transmission range. The vehicle is now ready to drive and can be moved.

Ending operational readiness/Switching off ignition

Ending operational readiness automatically: Get out of the vehicle with the driver's key and close the driver door. The driver's key is no longer detected outside the vehicle. Operational readiness ends.

Ending operational readiness manually: Press Start/Stop switch until the instrument cluster is switched off.

Ending driving readiness/Stopping engine

Vehicle is stationary: Press the P  button on the instrument cluster. The vehicle is parked.

1. Using PiUS, load the web app data package with part number 9J1.909.112A  onto the inserted USB stick.

   The PiUS software version must be 1.0.10.20309  or higher.

2. Connect the battery charger to the jump-start terminal and start it.
3. Establish operational readiness.
4. Place original remote control (hand-held transmitter) in emergency start tray.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Emergency start tray

5. Insert USB stick containing the web app data package into the USB slot in the centre console.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

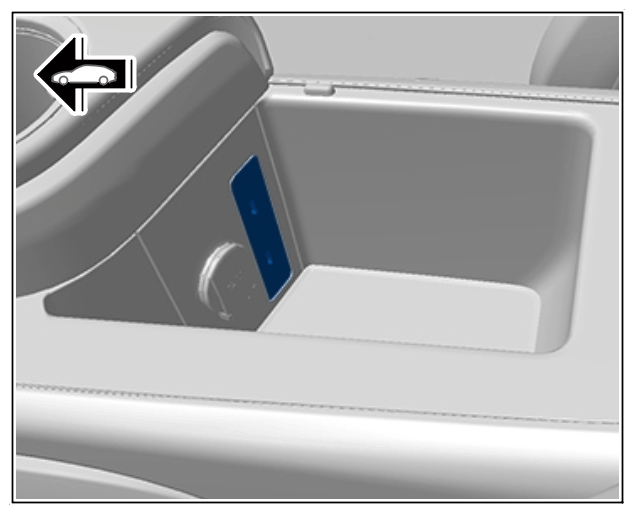

   USB slot

6. Installation starts automatically after you insert the USB stick.
   1. 6.1  You can track the progress of the installation in the display and operator control unit.
   2. 6.2  The installation process must not be interrupted.
   3. 6.3  The display and operator control unit performs several restarts.

      Installation can take several minutes.

   4. 6.4  The display and operator control unit displays the message: Installation successful.
7. Remove USB stick from USB slot.
8. Reset operational readiness.
   1. 8.1  End operational readiness.
   2. 8.2  Switch off and disconnect the charger.
   3. 8.3  Close all doors and lids.
   4. 8.4  Lock the vehicle.
   5. 8.5  Wait 2 minutes (LED on parking brake goes off).
   6. 8.6  Open the vehicle.
   7. 8.7  Connect a charger.
   8. 8.8  Establish operational readiness.
9. Establish data connection using an external WiFi hotspot.

   (See operating instructions)

10. Check the display and operator control unit to see whether apps were installed.
    1. 10.1  It may take several minutes for the installed apps to be displayed in the display and operator control unit.
    2. 10.2  Call up an app in the display and operator control unit (e.g. Weather app).
    3. 10.3  If you can open the app, installation was successful.

    If the Connect web apps are not displayed, check the settings of the services in the display and operator control unit.

11. Check the Porsche Connect settings  menu in the display and operator control unit.
    1. 11.1  Select the Settings  menu in the display and operator control unit.
    2. 11.2  Select Privacy and Porsche Connect settings  .
    3. 11.3  Select Overview of all Porsche Connect services  .

    If an overview of various Connect services is displayed, continue with Step  8.

    If an overview of various Connect services is not displayed, continue with Step 12.

12. Activate Private mode, then deactivate it again.
    1. 12.1  Select the Settings  menu in the display and operator control unit.
    2. 12.2  Select Privacy and Porsche Connect settings  .
    3. 12.3  Select and activate Private mode  .
    4. 12.4  Wait one minute.
    5. 12.5  Select and deactivate Private mode  .
    6. 12.6  Continue with Step  8.
