Connectivity Function Test
- Irreparable damage to control unit
- Damage to control unit
- Fault entries in the control unit
- Control unit programming/coding is aborted
- Malfunctions in the control unit, even during programming
→ Switch off ignition before disconnecting the control unit.
→ Make sure that the power supply is not interrupted during programming/coding.
→ Connect the battery charger with at least > current 90 A to the vehicle battery.
Information
Make sure that you have sufficient mobile phone and satellite reception.
Information
The terms "Ignition on" and "Starting engine" are re-defined for fully electric vehicles (battery electric vehicles - BEV).
Establishing operational readiness/Ignition on:
Prerequisites for establishing operational readiness: High-voltage battery is sufficiently charged, remove vehicle charging cable from the vehicle charge port, put driver's key in the emergency start tray.
Establishing operational readiness automatically: Get into the vehicle and close the driver's door. The driver's key is recognized inside the vehicle. Operational readiness is established.
Establishing operational readiness manually: Press Start/Stop switch. The driver's key is recognized inside the vehicle. Operational readiness is established.
Establishing operational readiness/Starting engine:
Establish operational readiness and engage transmission range. The vehicle is now ready to drive and can be moved.
Ending operational readiness/Switching off ignition
Ending operational readiness automatically: Get out of the vehicle with the driver's key and close the driver door. The driver's key is no longer detected outside the vehicle. Operational readiness ends.
Ending operational readiness manually: Press Start/Stop switch until the instrument cluster is switched off.
Ending driving readiness/Stopping engine
Vehicle is stationary: Press the P button on the instrument cluster. The vehicle is parked.
- Establish operational readiness on the vehicle.

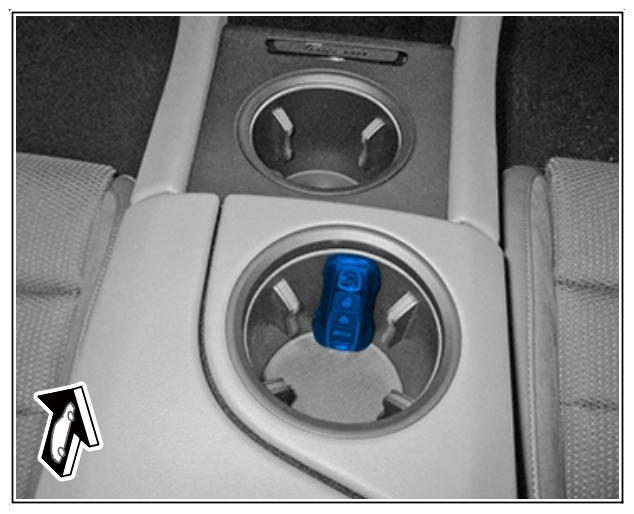

- Place original remote control in emergency start tray.
Emergency start tray
- Select the Devices menu in the main menu on the display and operator control unit.
- Integrated SIM card and connection icon must be displayed in cyan (blue) in the Connection wizard menu. LTE or 3G/2G must be displayed at the top right of the display.
