Assembling Disc Wheel

  1. Check the thread of the aeroblades for soiling and damage. Clean the thread if necessary and replace aeroblade if damaged.

    Information

    G15553277Courtesy of PORSCHE CARS NORTH AMERICA, INC.

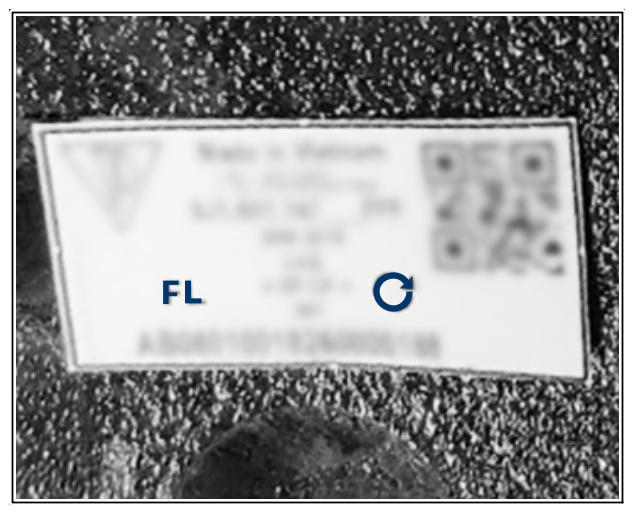

    Marking on back of aeroblades (example)

    • The allocation of aeroblades to the front and rear axle and the respective side of the vehicle is indicated accordingly on the back.
    • Rolling direction arrow indicates the respective side of the vehicle.
    • The marking FL means front left
    • The marking FR means front right
    • The marking RL means rear left
    • The marking RR means rear right
  2. Fit aeroblades.
    G15553278Courtesy of PORSCHE CARS NORTH AMERICA, INC.

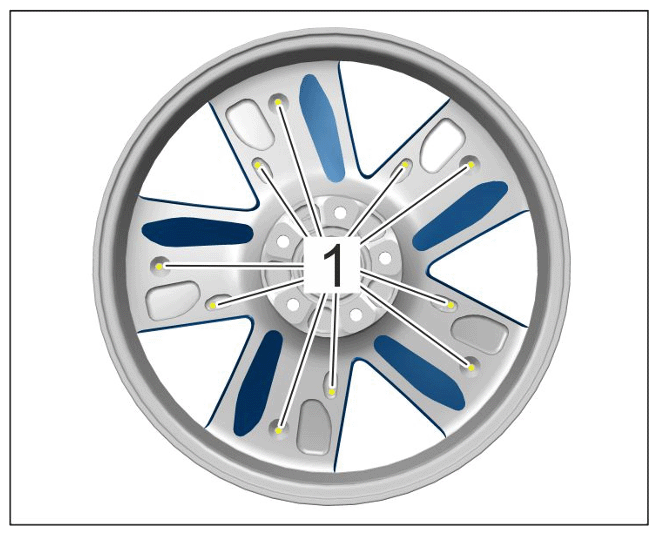

    Aeroblade mounting

    1. 2.1  Tighten screws -1-  using > VAS 6253A - Torque wrench, 0.4-2 Nm (0.3-1.5 ftlb.)  to > Tightening torque 2 Nm  .
