Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Tie rod to steering gear Item 2 Tightening torque 140 Nm (104 ftlb.)

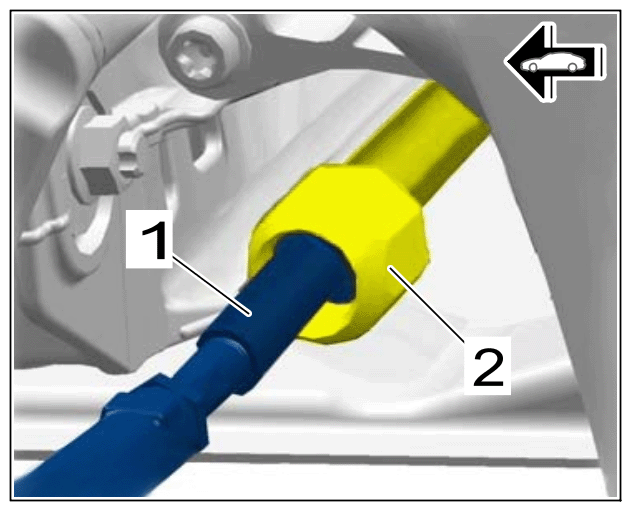

G15553707Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tie-rod ball joint
