Removing Steering Column Casing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

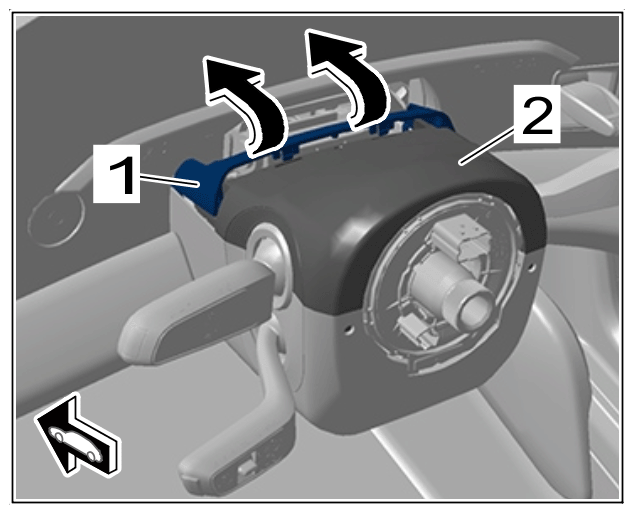

Dust boot

Information

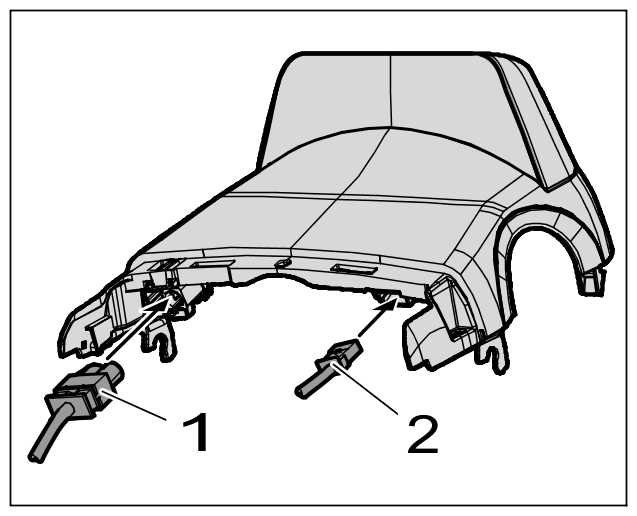

On vehicles with driver monitoring (I-no. GJ2), the electric plug connections -1 and 2-  must also be released and disconnected.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections

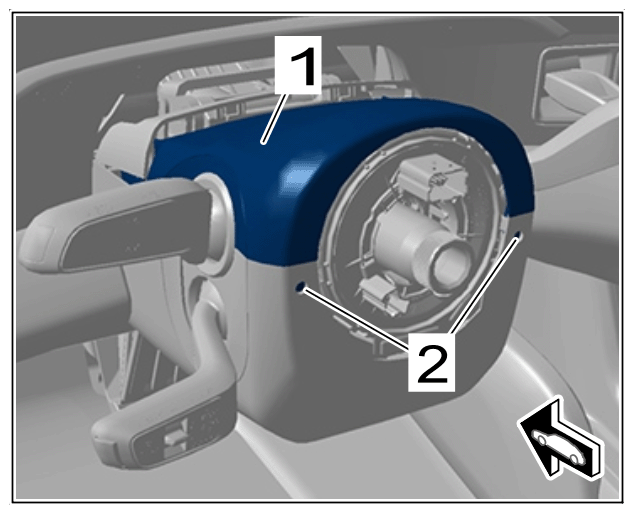

1. 2.1  Turn the steering wheel so that the openings -2-  are accessible.
2. 2.2  Unclip upper part of steering column casing -1-  through the openings -2-  using a suitable screwdriver.
3. 2.3  Guide out upper part of steering column casing -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper part of steering column casing

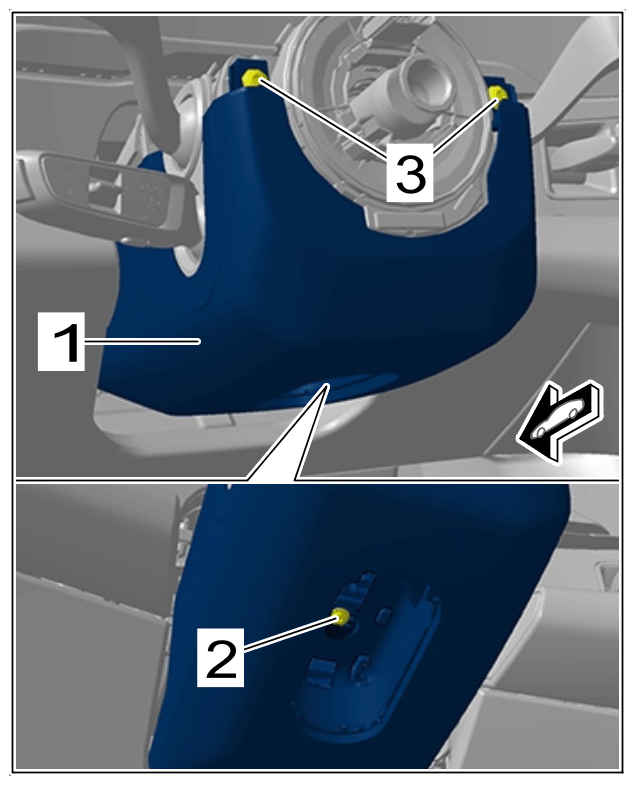

1. 3.1  Unscrew screw -2-  .
2. 3.2  Turn the steering wheel so that the screws -3-  are accessible.
3. 3.3  Unscrew and remove screws -3-  .
4. 3.4  Fold lower part of steering column casing -1-  downwards.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower part of steering column casing

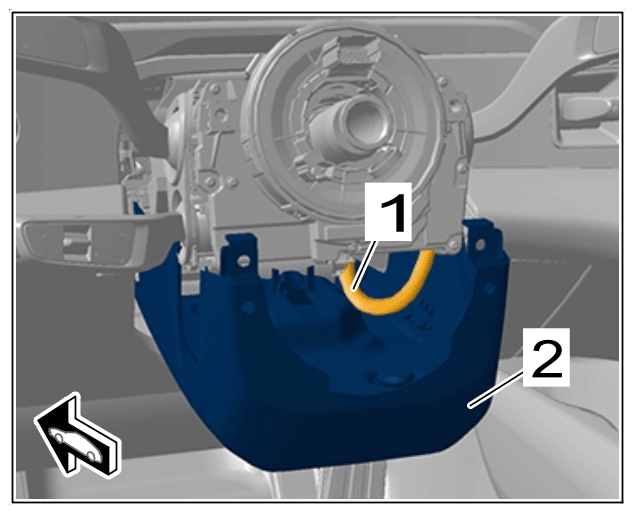

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

wiring harness
