Assembling Steering Wheel

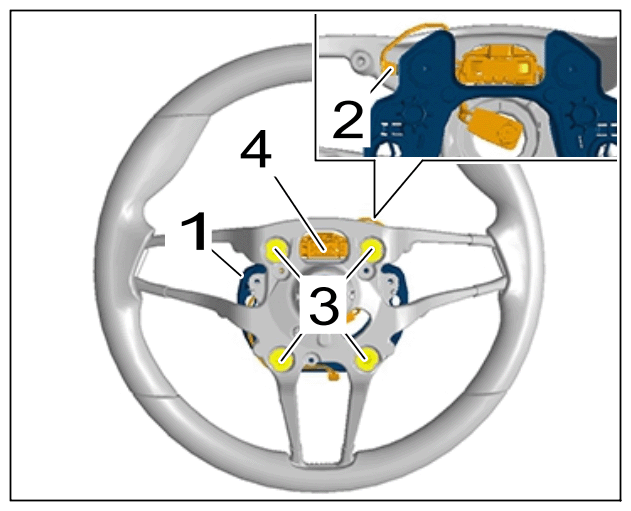

1. 1.1  Position electric wiring harness -4-  .
2. 1.2  Position contact bridge -1-  .
3. 1.3  Screw in and tighten screws -3-  .

   > Tightening torque 3.5 Nm (2.5 ftlb.)

4. 1.4  Connect and lock electric plug connection -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Contact bridge

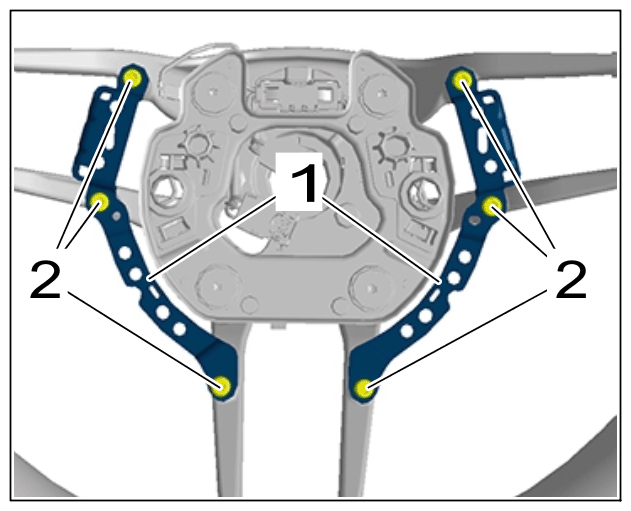

1. 2.1  Position bracket for multi-functional switch -1-  .
2. 2.2  Screw in and tighten screws -2-  .

   > Tightening torque 3.5 Nm (2.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bracket for multi-functional switch

Information

Multi-functional switches can be used immediately after installation. They do not need to be coded.

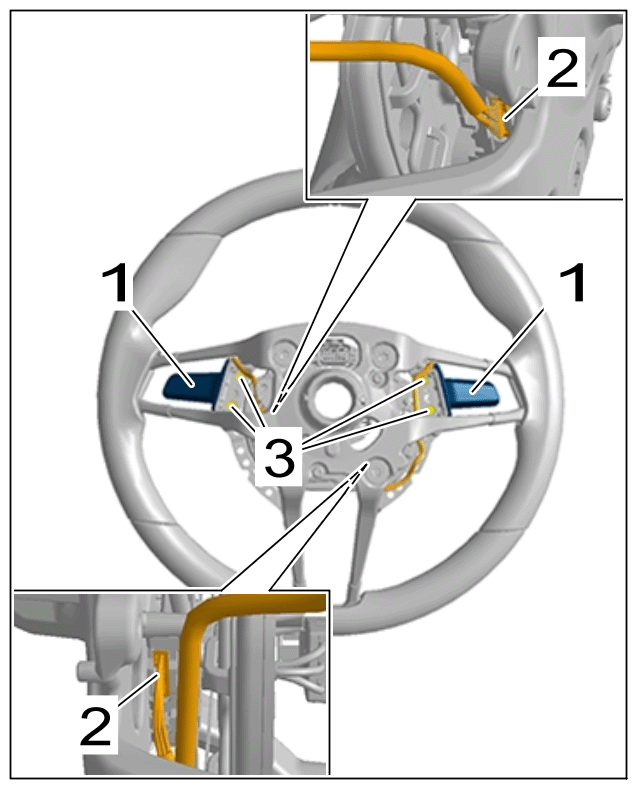

1. 3.1  Position multi-functional switch -1-  .
2. 3.2  Screw in and tighten screws -3-  .

   > Tightening torque 1.5 Nm (1 ftlb.)

3. 3.3  Connect and lock electric plug connection -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Multi-functional switch

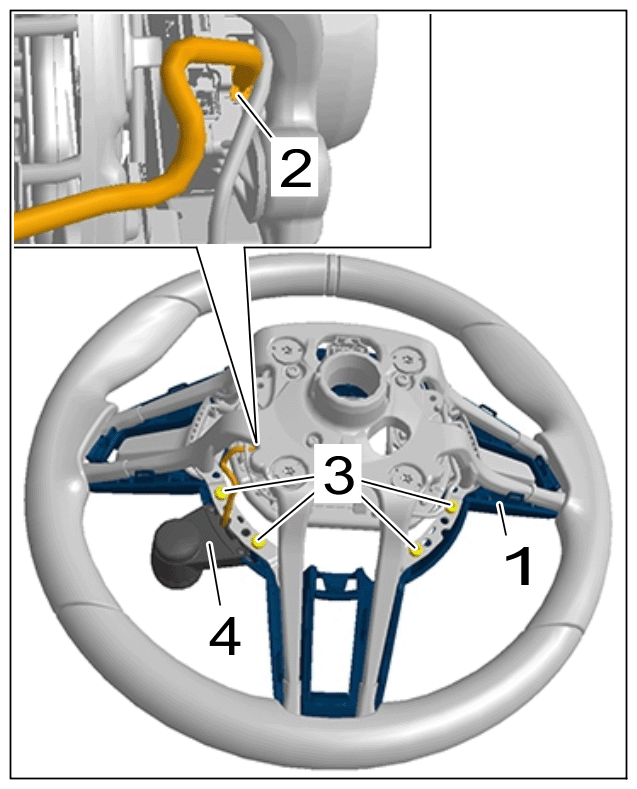

1. 4.1  Position front steering wheel cover -1-  together with switch for driving mode -4-  and clip it in.
2. 4.2  Connect and lock electric plug connection -2-  .
3. 4.3  Screw in and tighten screws -3-  .

   > Tightening torque 1.5 Nm (1 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front steering wheel cover

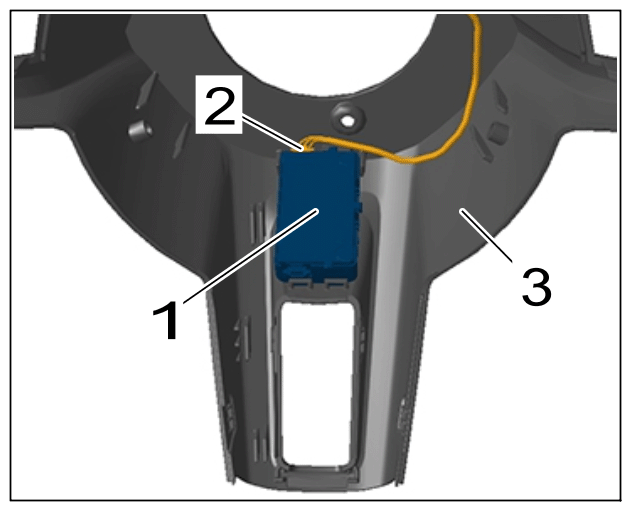

1. 5.1  Clip control unit -1-  into rear steering wheel cover -3-  .
2. 5.2  Connect and lock electric plug connection -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Control unit

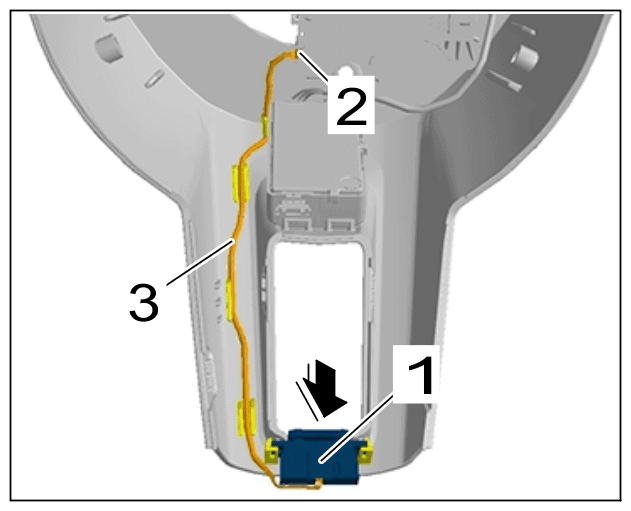

1. 6.1  Clip in heated steering wheel switch -1-  in direction of arrow.
2. 6.2  Connect and lock electric plug connection -2-  .
3. 6.3  Clip in electric line -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heated steering wheel switch

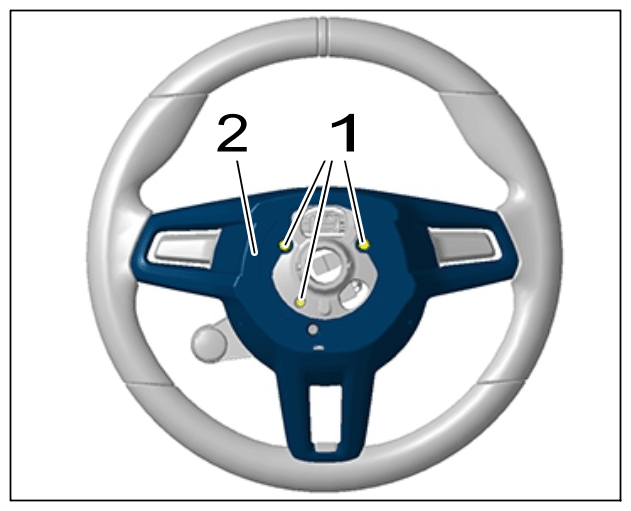

> Tightening torque 2.8 Nm (2 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear steering wheel cover
