Installing Passenger Compartment Temperature Sensor

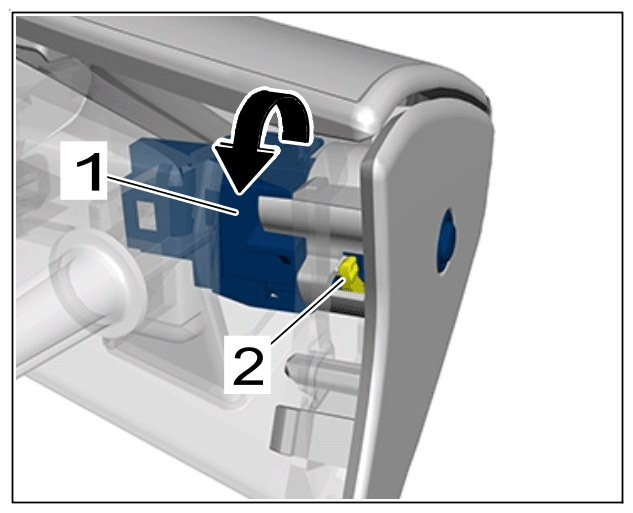

1. Install passenger compartment temperature sensor -1-  .
   1. 1.1 Position passenger compartment temperature sensor -1-  .
   2. 1.2 Lock retaining lug -2-  by turning the passenger compartment temperature sensor -1-  in the opposite direction to -direction of arrow-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Passenger compartment temperature sensor
