Removing (Front) Plenum Panel Cover

  1. Remove front plenum panel cover -1-  .
    1. 1.1 Unclip clips -2-  .
    2. 1.2 Release front plenum panel cover -1-  from retaining lugs -3-  .
    3. 1.3 Remove front plenum panel cover -1-  .

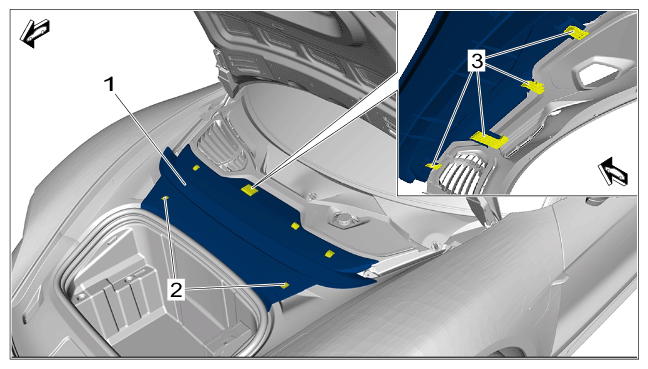

    G15565476Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front plenum panel cover
