Removing Switch For Memory Seat Adjustment

NOTE: NOTIFICATION
Voltage peaks
  • Risk of damage to electrical load or to the control unit

    → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

    → Switch off electrical loads before disconnecting or removing them.

  1. Remove the switch for memory seat adjustment -3-  .

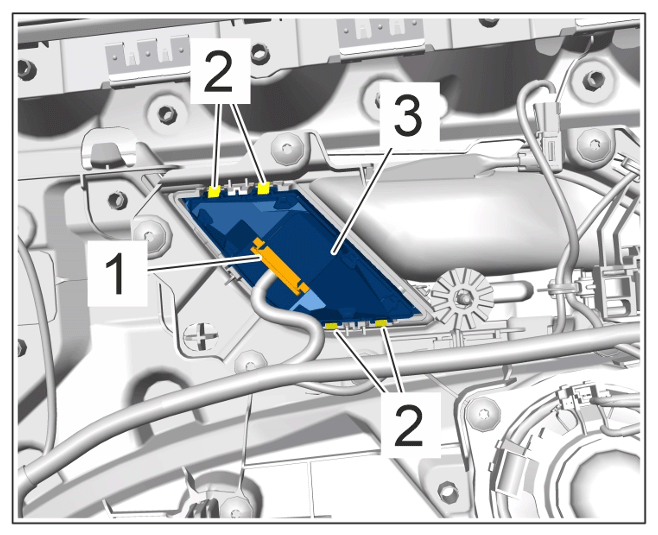

    G15565161Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Switch for memory seat adjustment

    1. 1.1 Release and unplug electric plug connection -1-  .
    2. 1.2 Unclip clips -2-  using a suitable tool.
    3. 1.3 Remove switch for memory seat adjustment -3-  .
