Removing Control Unit For Memory Seat Adjustment
NOTE:
NOTIFICATION
Voltage peaks
Voltage peaks
- Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
→ Switch off electrical loads before disconnecting or removing them.
Information
Always comply with the regulations for handling ESD-sensitive components!
- Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche.
- The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed.
- The electrical pins or plug contacts must not be touched.
Information
Some of the repair illustrations show only one side of the vehicle. Naturally, some steps also have to be performed on the opposite side of the vehicle as well. These must be carried out as a mirror image of the steps shown.
- Move the passenger seat back and up as far as possible.
- Remove control unit for memory seat adjustment -1-
.

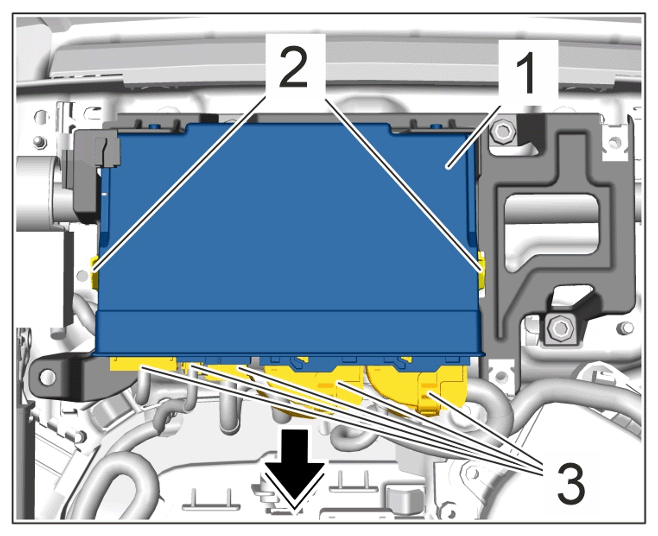

Control unit for memory seat adjustment
- 2.1 Unclip control unit for memory seat adjustment -1- from holder -2- and guide it out -arrow- until the electric plug connections are accessible.
- 2.2 Release and unplug electric plug connections -3- .
- 2.3 Remove control unit for memory seat adjustment -1- .
