Disassembling Front Backrest Frame

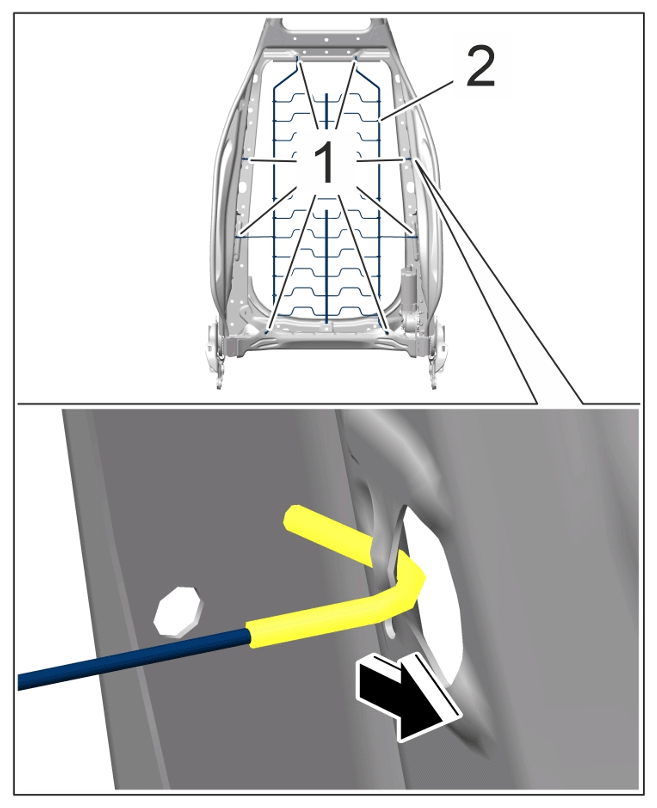

  1. Disengage retaining clips -1-  (-arrow-  ) and remove inner spring -2-  .
G15565097Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner spring
