Removing Backrest Frame

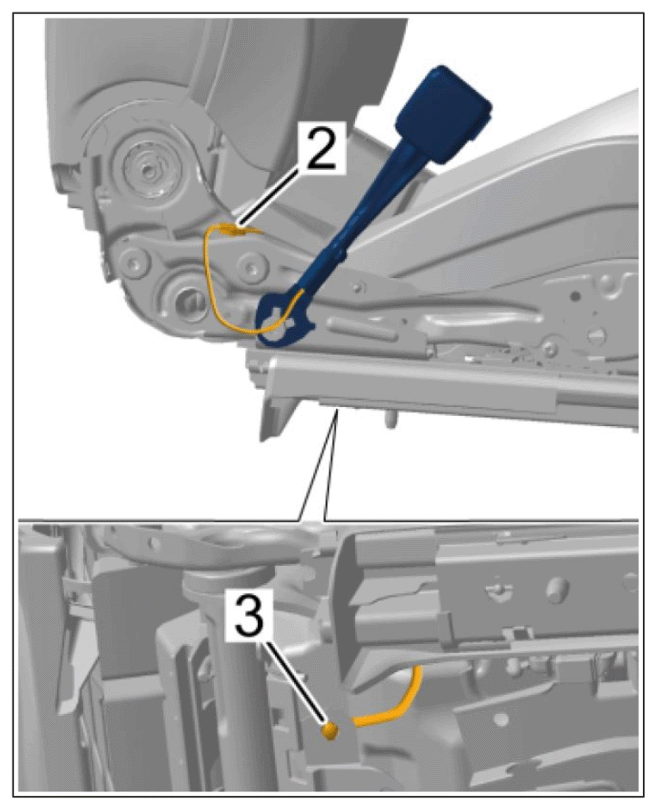

1. Unclip line bracket on seat-belt buckle -2-  and -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Line holder

2. Remove electric line -3-  .
   1. 2.1 Release electric plug connections -1-  and disconnect them.
   2. 2.2 Unclip line bracket -2-  .
   3. 2.3 Guide out -Arrow-  electric line -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric line

   Information

   The help of another person is required.

3. Unscrew screws -1-  and remove -2-  front backrest frame.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bolts
