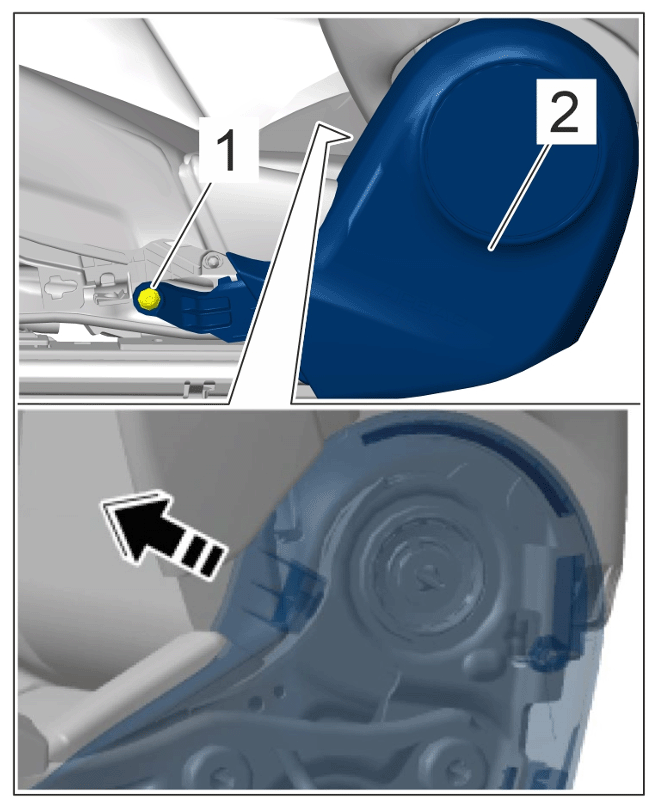

| Screw securing inner front seat trim panel to seat |
Item 1 |
Tightening torque |
2.2 Nm (1.6 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw |

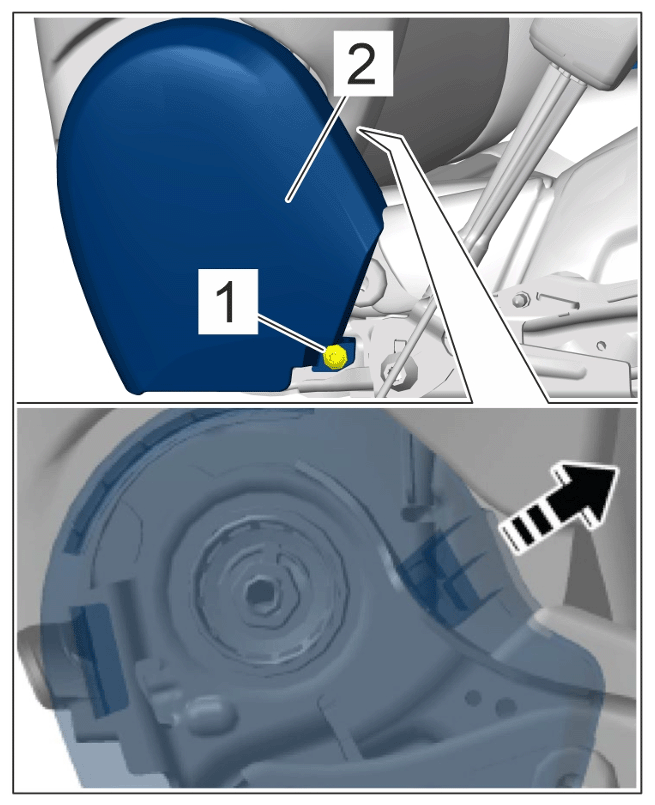

| Screw securing outer front seat trim panel to seat |
Item 1 |
Tightening torque |
2.2 Nm (1.6 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw |
