Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2

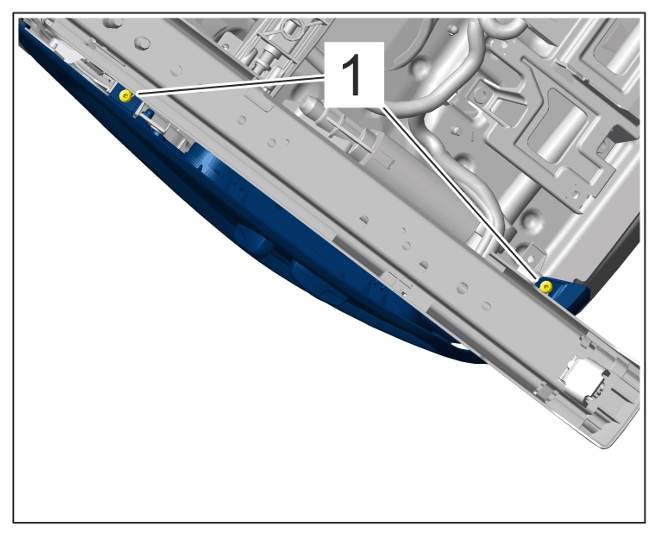

Screws securing trim panel for control panel to seat frame Item 1 Tightening torque 3.5 Nm (2.5 ftlb.)
G15565085Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
