Removing Trim Panel For Control Panel

Information

For additional 3D information, see

> 721619 REMOVING AND INSTALLING CONTROL PANEL TRIM

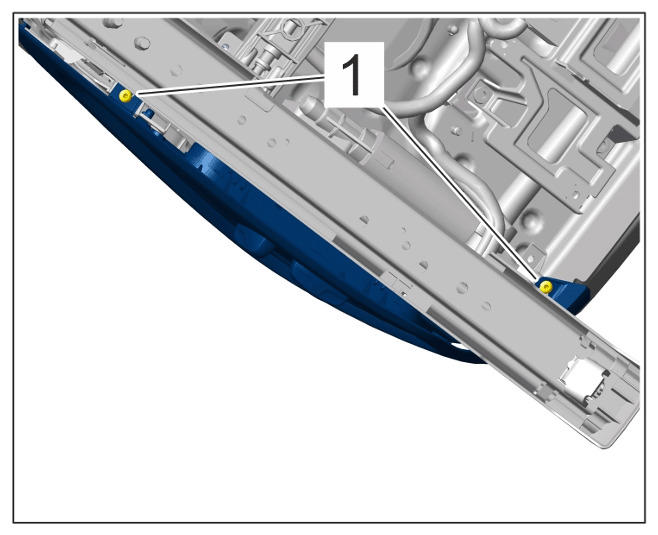

1. Unscrew and remove screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws

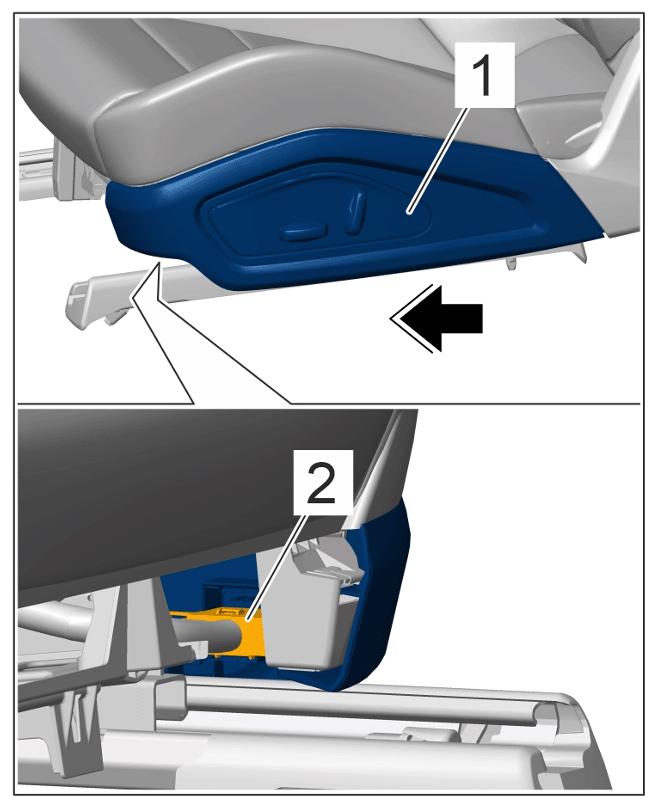

2. Pull out trim panel for control panel -1-  (-arrow-  ) and release and disconnect electric plug connection -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

3. Remove trim panel for control panel.
