68 Interior Equipment -- Y1A - TAYCAN (Y1A)
>>
WM, 681219 Removing And Installing Glove Compartment Lid
>>

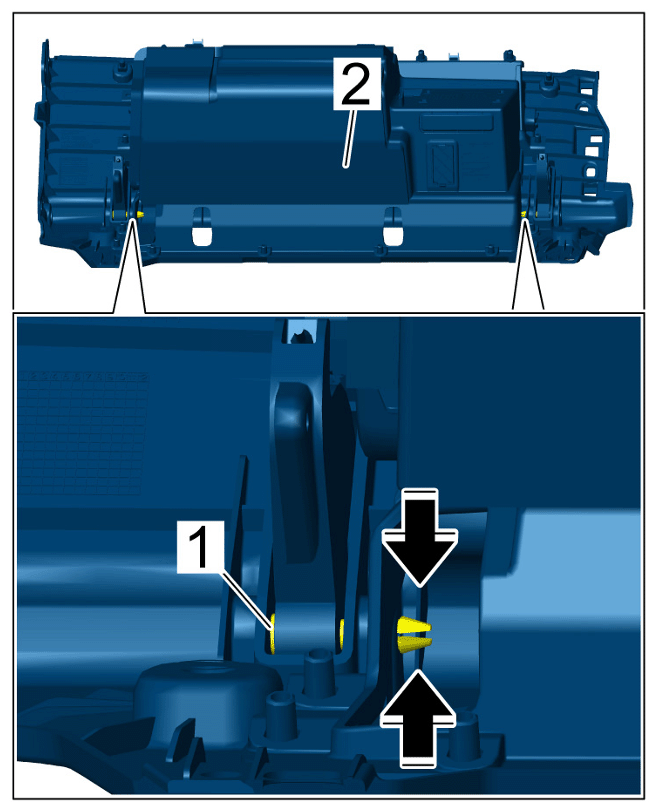

Removing Glove Compartment Lid
Removing Glove Compartment Lid
Press bolt
-1-
together
-Arrows-
, pull it out and remove glove compartment lid
-2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Bolt
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
