Installing Power-Steering Gear

WARNING: This page is about a different variant/trim than selected.
  1. Convert heat shields -1-  to suit new power-steering gear.

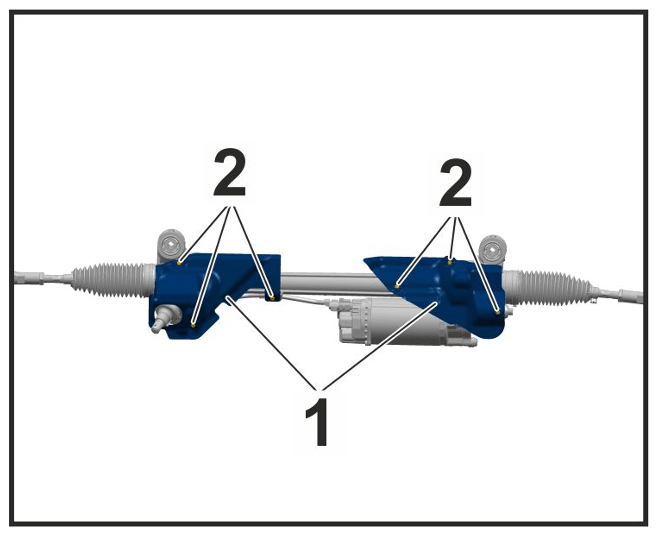

    G15858575Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for heat shields

    1. 1.1 Unscrew screws -2-  and tighten them on the new power-steering gear > Tightening torque 4 Nm (3 ftlb.)
  2. Place power-steering gear in installation position with the help of another person.

    Information

    The screws for the main bearings -2-  on the power-steering gear must only be tightened when the secondary bearing on the power steering gear has been screwed on without tightening it -3-  .

    Otherwise, the screw -3-  on the secondary bearing can break.

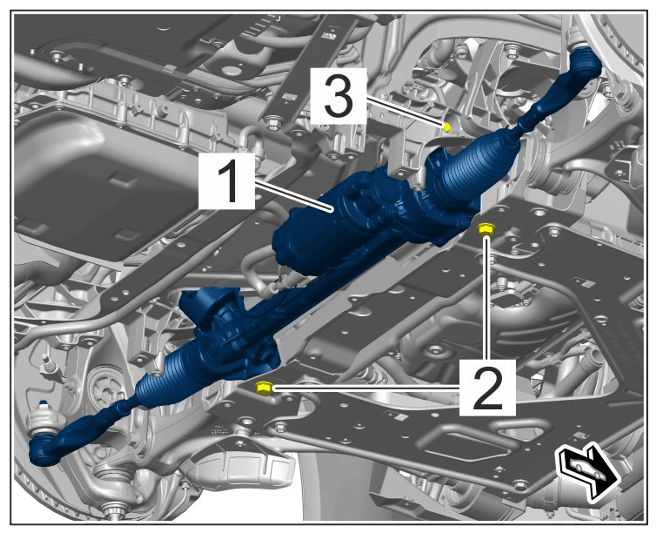

    G15858576Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for power-steering gear

  3. Fit screws -2-  on the main bearing of the power-steering gear -1-  (do not tighten!). They will be tightened during subsequent work.

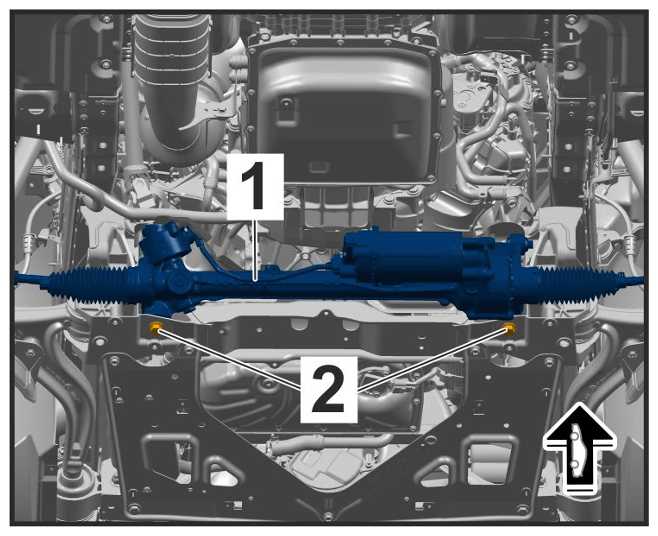

    G15858577Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for power-steering gear

  4. Fit new screw -1-  and nut -2-  on secondary bearing for power-steering gear.

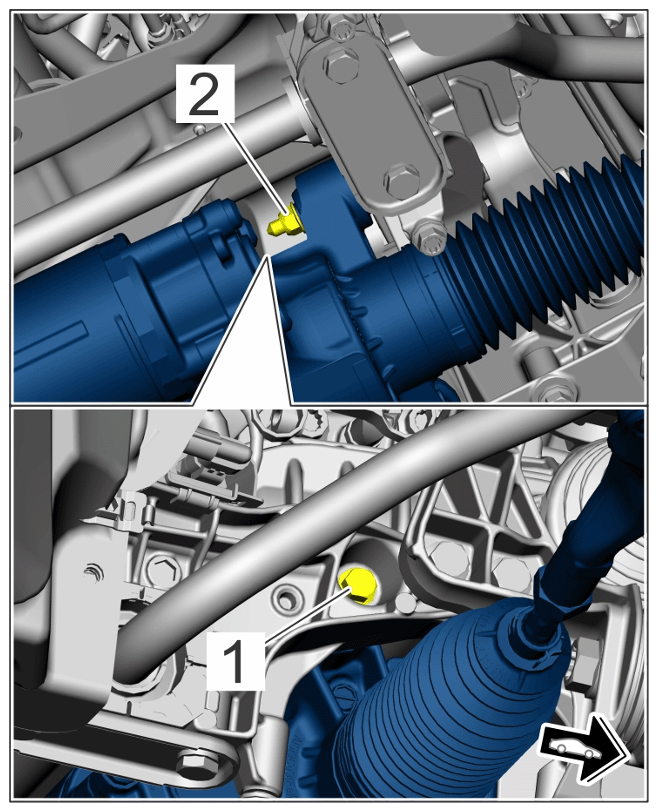

    G15858578Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw joint for secondary bearing on power-steering gear

  5. Secure electric line -1-  on the power-steering gear -2-  .

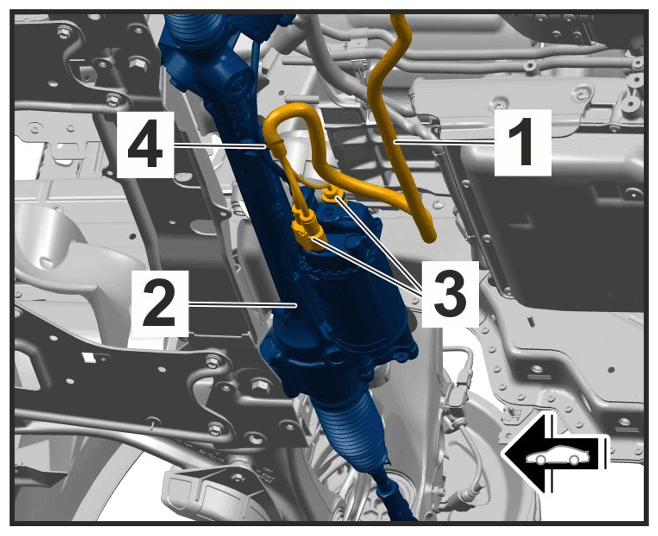

    G15858579Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric connectors on power-steering gear

    1. 5.1 Connect and lock electric connectors -3-  .
    2. 5.2 Secure bracket -4-  .

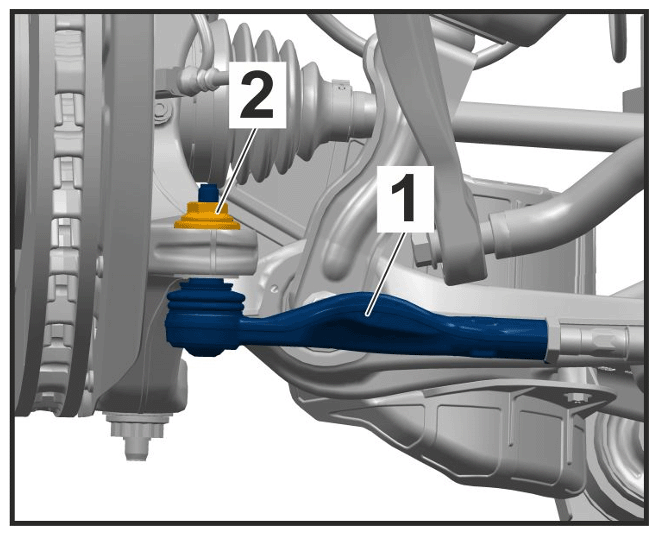

  6. Fit tie-rod ball -1-  at the wheel bearing housing.
    G15858580Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for tie-rod ball on wheel bearing housing

    1. 6.1 Tighten nut -2-  > Tightening torque 85 Nm (63 ftlb.)
  7. Attach and lock cable plug -2-  to front speed sensor -1-  .

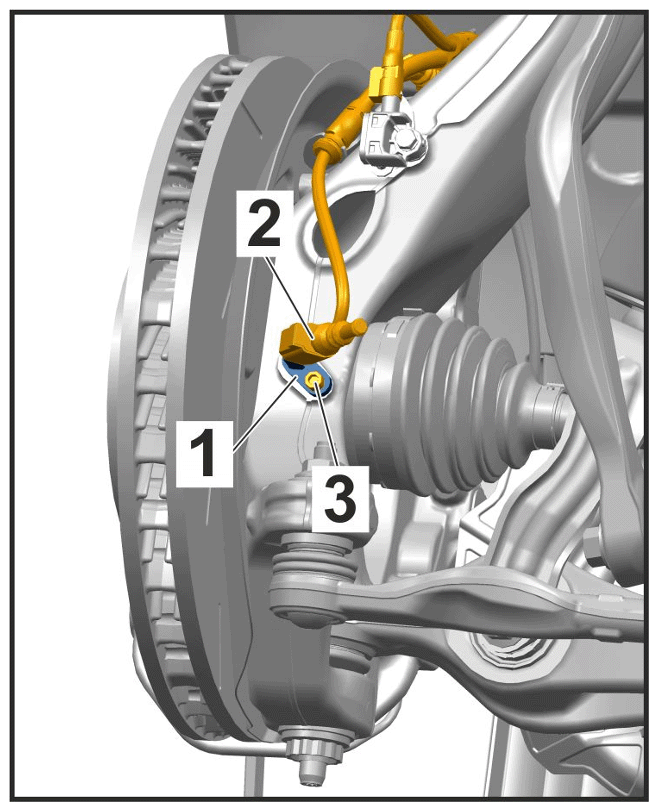

    G15858581Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for front speed sensor

  8. Attach the universal joint -1-  to the power-steering gear.
    1. 8.1 Align pins for steering column in accordance with markings for left/right-hand drive vehicles >Steering in Centre position.

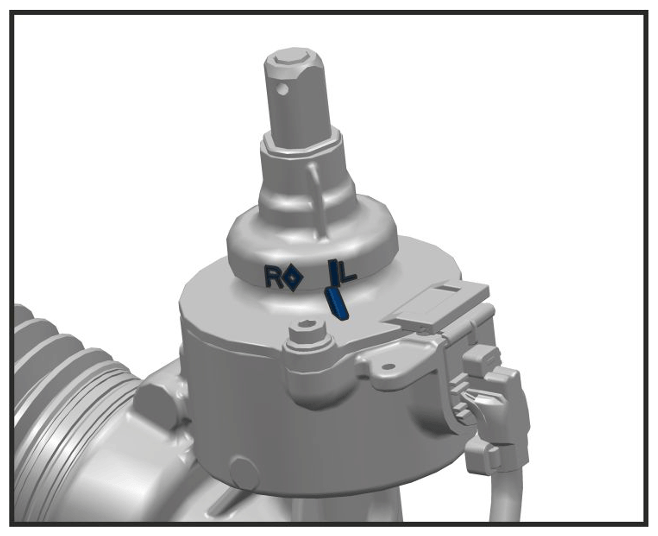

      G15858582Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Steering in Centre position

    2. 8.2 Slide universal joint onto the pin on the steering gear.
    3. 8.3 Tighten new screw -2-  . >Initial tightening 20 Nm (15 ftlb.) Final tightening torque angle + 90°

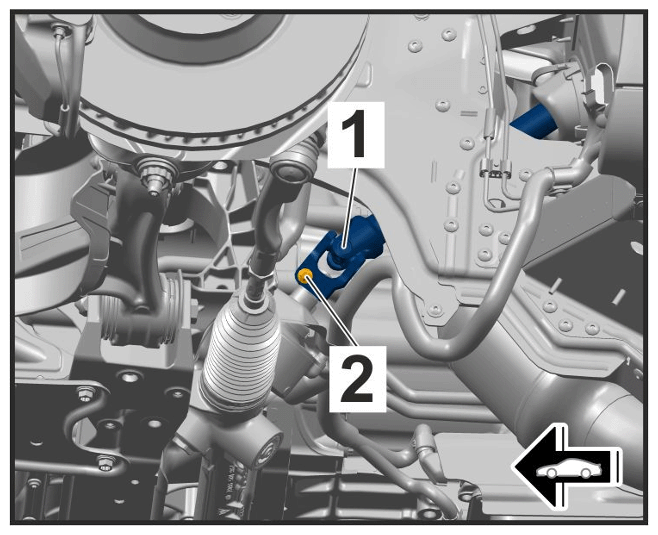

    G15858583Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Universal joint mounting
