Removing Coolant Temperature Sensor (Cylinder Housing)

Information

When the engine is cold, the cap on the coolant reservoir can be opened briefly in order to release residual pressure in the cooling system.

1. Set oil and coolant lines aside.

   Information

   If sealing rings remain stuck in the cylinder head, pull with a wire.

   Information

   Re-install temperature sender (cylinder crankcase) as quickly as possible or close it off using a suitable stopper to prevent unnecessary coolant loss.

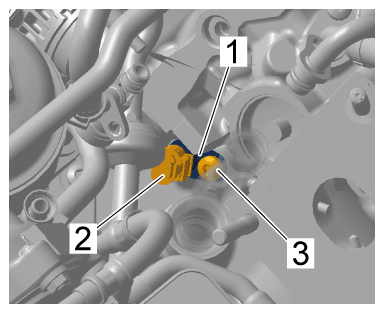

2. Remove coolant temperature sensor (cylinder housing) -1-  .
   1. 2.1 Release and unplug electric plug connection -2-  .
   2. 2.2 Place a cloth underneath to soak up emerging coolant.
   3. 2.3 Unscrew and remove screw -3-  .
   4. 2.4 Remove coolant temperature sensor (cylinder housing) -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing coolant temperature sensor (cylinder housing)
