Assembly Overview Of Front-Axle Final Drive

WARNING: This page is about a different variant/trim than selected.

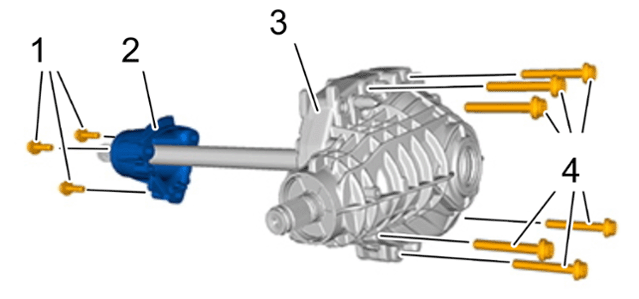

Fig 1: Front-Axle Final Drive And Bracket Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front-axle final drive and bracket

1	Screws on bracket > Tightening torque 54 Nm (40 ftlb.)
2	All-wheel final drive bracket
3	All-wheel final drive
4	Screws for all-wheel final drive > Tightening torque 54 Nm (40 ftlb.)

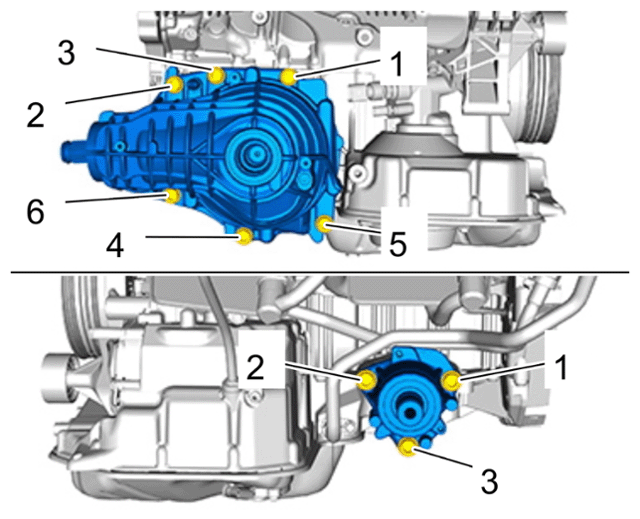

Fig 2: Front-Axle Final Drive Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for front-axle final drive

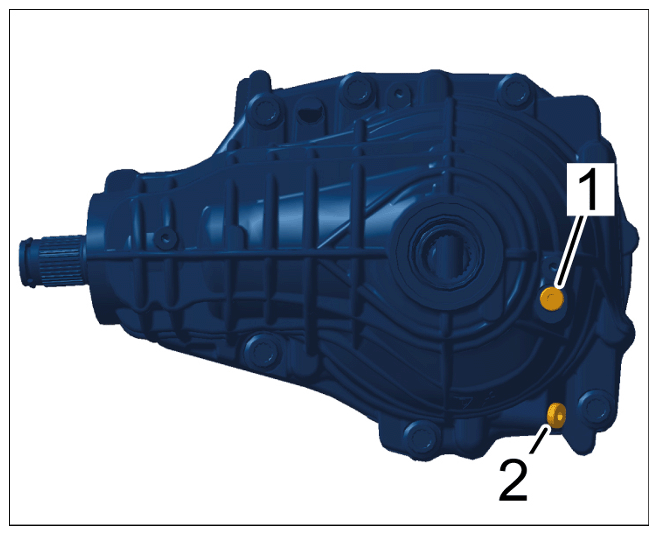

Fig 3: Oil Drain Screw To Transfer Gear Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil drain screw to transfer gear

1	Oil filler screw > Tightening torque 10 Nm (7.5 ftlb.)
2	Oil drain plug > Tightening torque 10 Nm (7.5 ftlb.)
