Coolant Hoses For Low-Temperature System On Front-Axle Carrier
WARNING: This page is about a different variant/trim than selected.

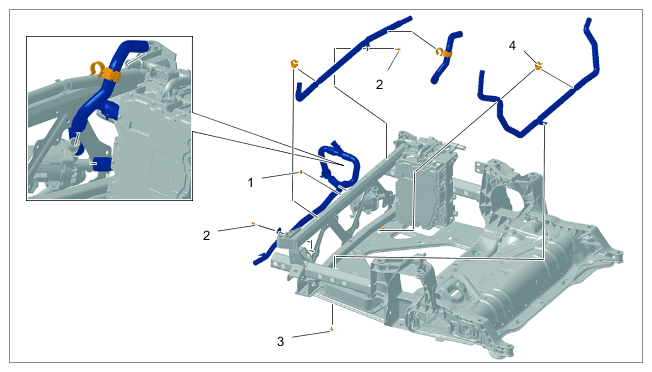

Fig 1: Coolant Hoses For Low-Temperature System On Front-Axle Carrier Components Location With Torque Specification
Coolant hoses for low-temperature system on front-axle carrier
| 1 | Screw, M6 > Tightening torque 5.6 Nm (4 ftlb.) |
| 2 | Expansion rivet, B6.5 x 12.3 |
| 3 | Screw, M6 x 12 > Tightening torque 8 Nm (6 ftlb.) |
| 4 | Holder |
