Removing Generator

1. Remove cover on generator -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

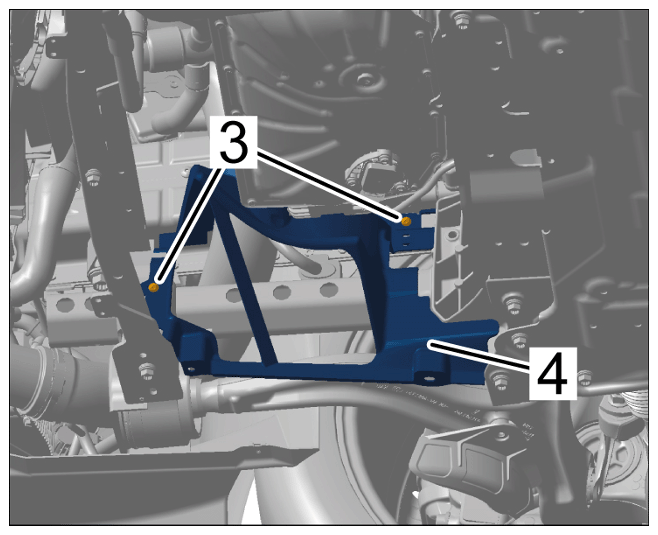

   Generator cover

   1. 1.1 Undo clips -3-  .
   2. 1.2 Remove cover on generator -4-  .
2. Pull off protection cap -5-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

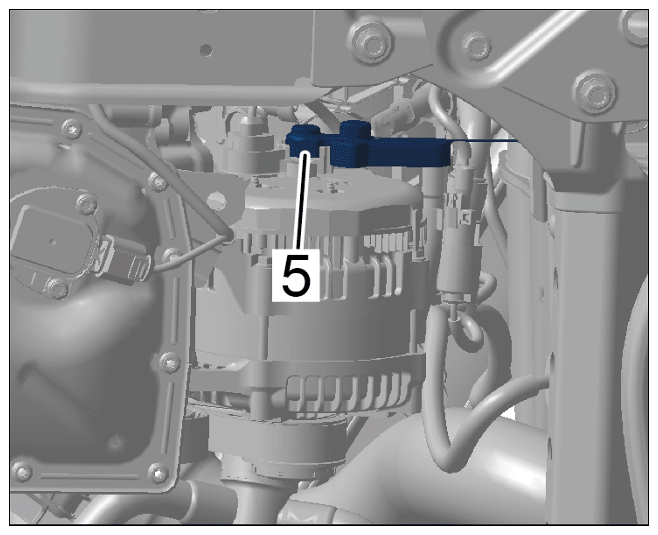

   Protection cap

3. Screw off nut -6-  for B+ line -7-  on the generator -8-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

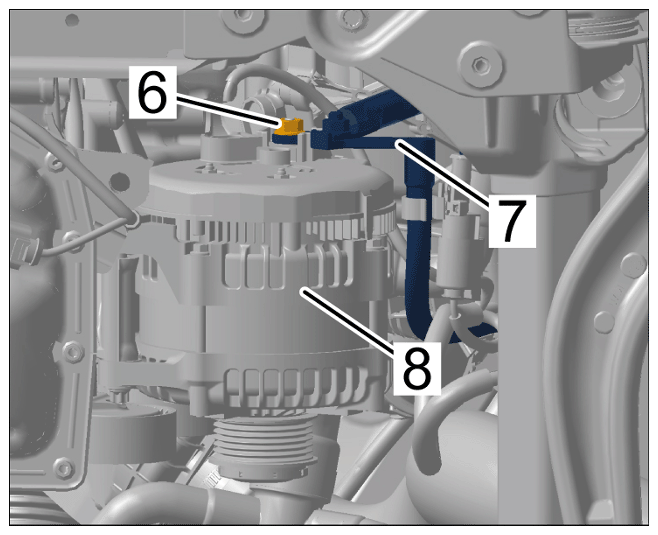

   B+ line

4. Release and disconnect electric plug connection -9-  on the generator -8-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

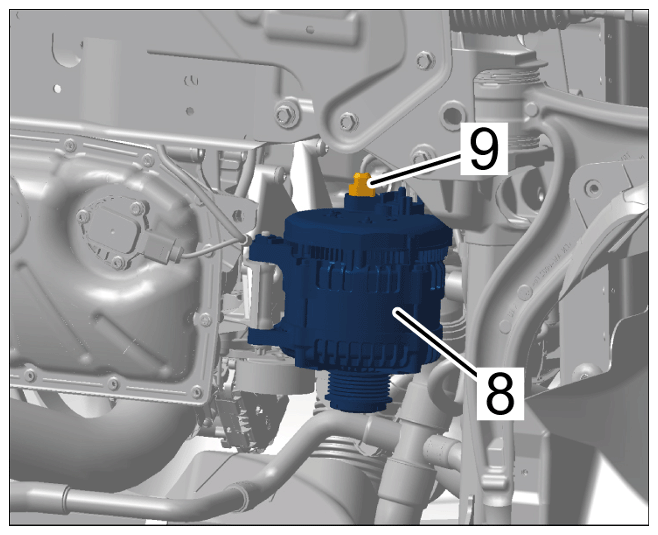

   Electric plug connection

5. Remove the generator -8-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

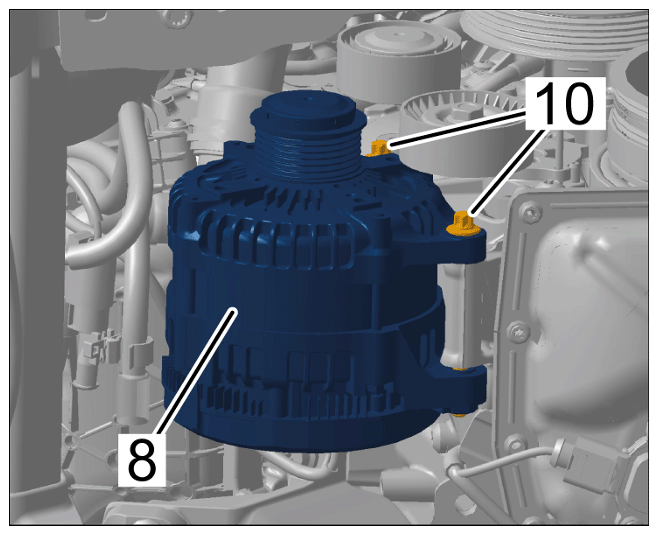

Generator

1. 5.1 Unscrew screws -10-  .
2. 5.2 Remove generator -8-  in a downward direction.
