Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|

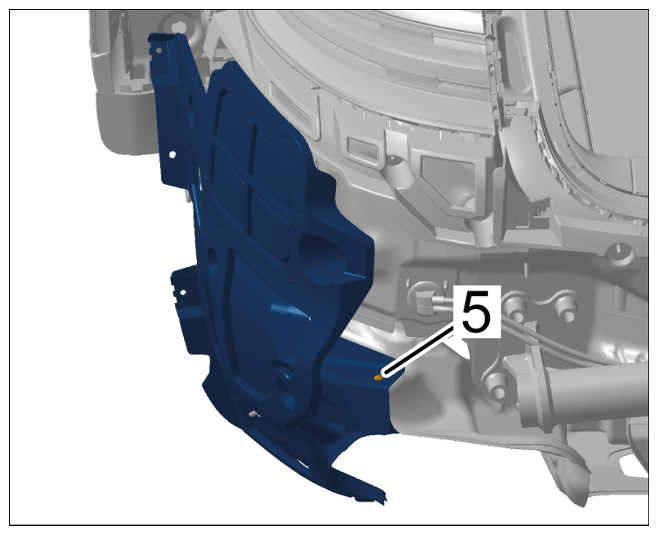

| Screw for retaining strip with neat protection | Item 5 | Tightening torque | 2.5 Nm (1.8 ftlb.) | ||
|
Screw for retaining strip on rear light |
|||||

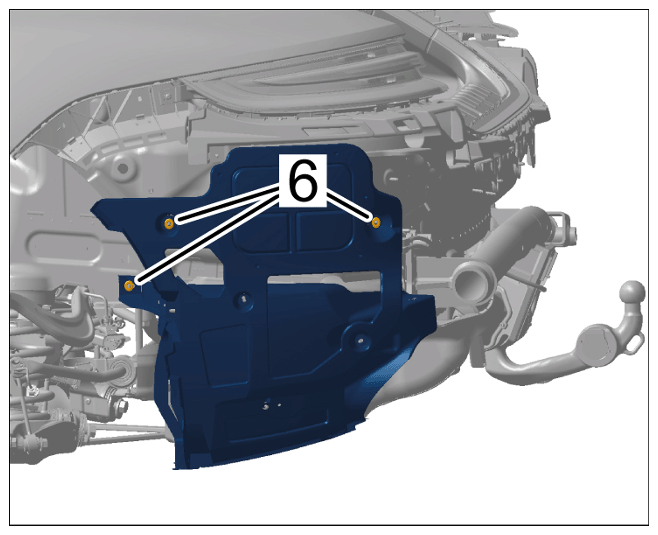

| Nut on retaining strip with heat protection | Item 6 | Tightening torque | 9 Nm (6.6 ftlb.) | ||
|
Nuts for holder with heat protection |
|||||
| Speed nut on heat shield | Tightening torque | 2.5 Nm (1.75 ftlb.) | |||
| Screw for heat shield | Tightening torque | 2.5 (.75 ftlb.) Nm |
