Preliminary Work

WARNING: This page is about a different variant/trim than selected.

For heat shields on centre tunnel:
Remove exhaust system.

> 260119 REMOVING AND INSTALLING EXHAUST SYSTEM
For heat shields on rear bumper:
Remove rear apron.

> WM, 635519 REMOVING AND INSTALLING REAR APRON (Coupe) , WM, 635519 REMOVING AND INSTALLING REAR APRON (Wagon)

For heat shield on rear silencer:

3.2 Remove heat insulation at the centre, luggage compartment pan -1- .

3.2.2 Remove heat insulation at the centre, luggage compartment pan -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

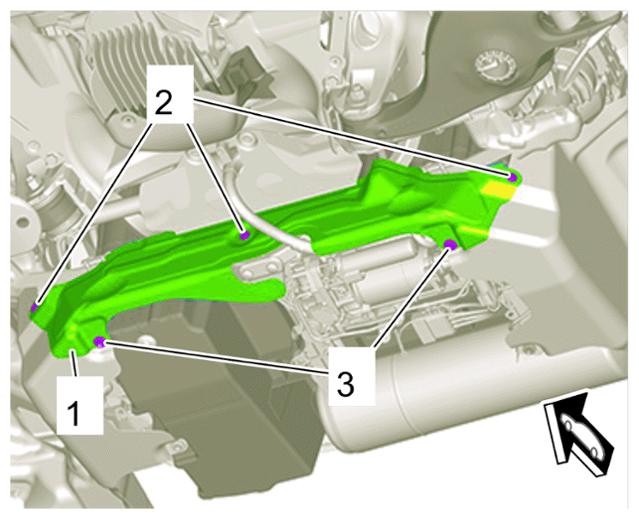

Heat insulation at the centre, luggage compartment pan
