Installing Heat Shield For Rear Bumper
WARNING: This page is about a different variant/trim than selected.
- Install heat shield for rear bumper.
- 1.1 Move heat shield for rear bumper -3-
into installation position.
- 1.2 Fit and tighten nuts -1-
and screw -2-
.
Nuts -1-
: > Tightening torque 9 Nm (6.6 ftlb.)
Screw -2-
: > Tightening torque 2.5 Nm (1.8 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

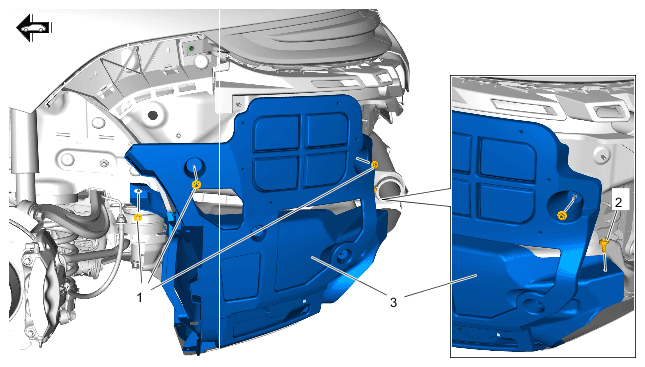

Heat shield for rear bumper, left
