Installing Exhaust System

WARNING: This page is about a different variant/trim than selected.

Installing exhaust system

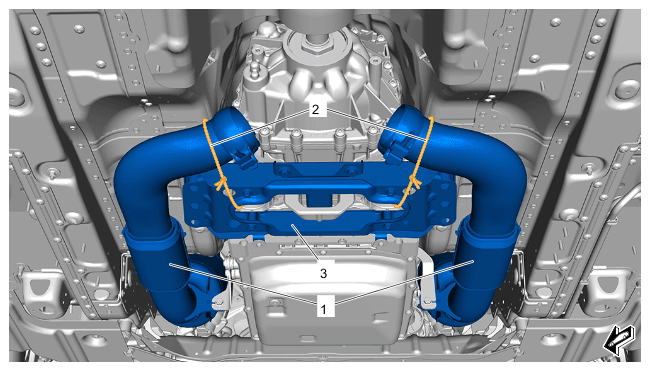

1.1 Position exhaust system on a transmission jack and secure it with a tension strap -arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing exhaust system on transmission jack (similar to illustration)

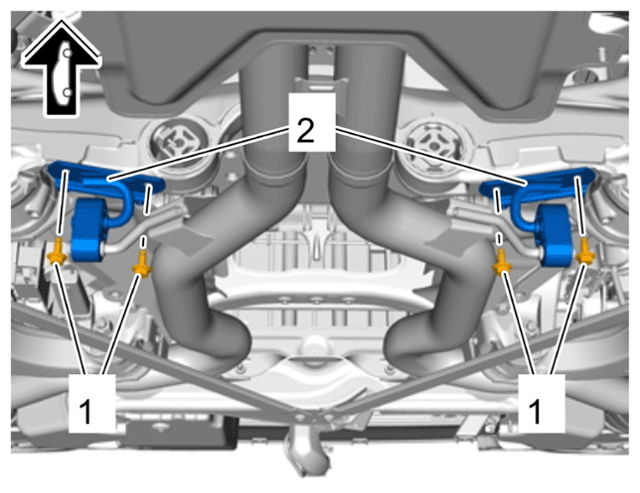

Fit and tighten screws -1- on the rear silencer holders -2- .
> Tightening torque 23 (1 7 ftlb.) Nm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear silencer holders (figure shows V8 Turbo)
Loosen secured decoupling elements -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening decoupling elements

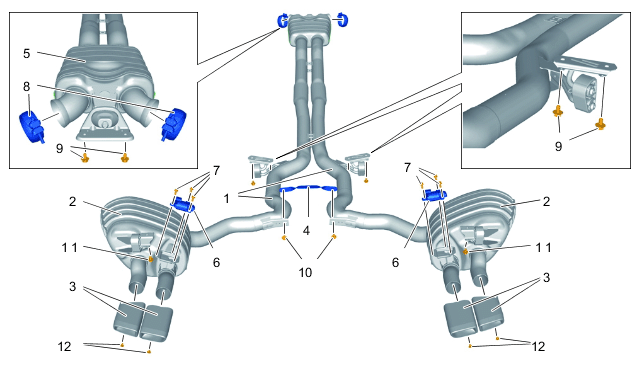

Fit exhaust system on transmission support.

4.1 Fit and tighten screws -4- on transmission support holders -3- .
> Tightening torque 23 Nm (17 ftlb.)

4.2 Attach new ball clamps -2- to the connection between the catalytic converters and front silencer.

4.2.1 Tighten ball clamps -2- .

> Tightening torque 35 Nm (26 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Exhaust system on transmission support

Fit holder for centre exhaust system mount -2- .

5.1 Fit and tighten screws -1- .

> Tightening torque 23 Nm (17 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Centre exhaust system mount

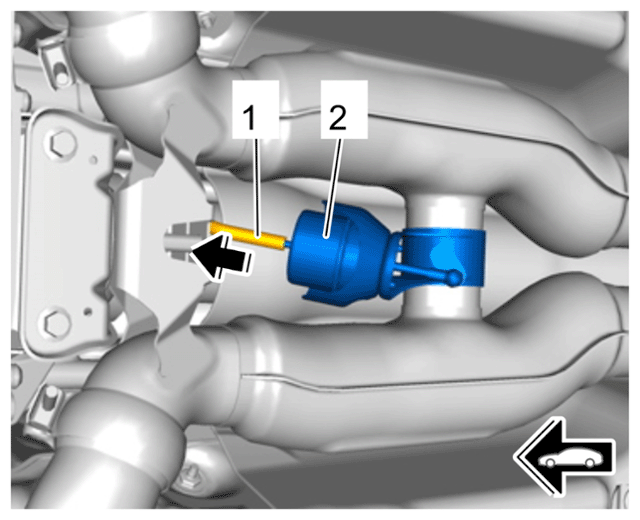

For vehicles with sports exhaust system: Connect vacuum hose -1- to vacuum unit for exhaust flap -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vacuum hose for exhaust system

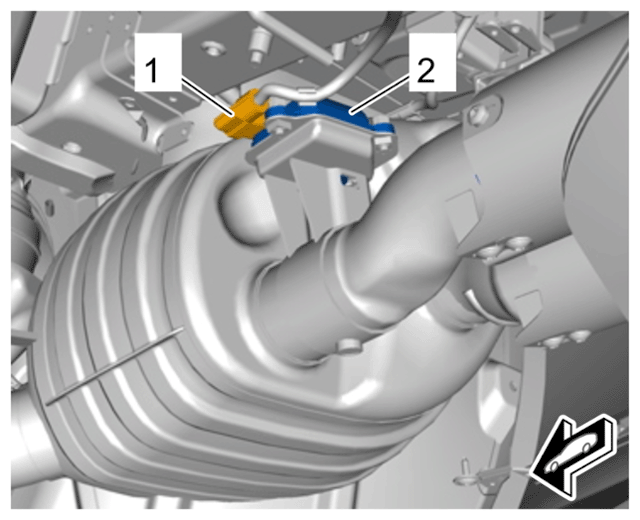

Plug in cable plugs -1- on actuators -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Actuator for exhaust flap
For vehicles with rear axle steering: Fit strut -4- between the rear silencers.
> Tightening torque 23 Nm (17 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Exhaust system (figure shows V8 Turbo)

Install tunnel stut -3- .

9.1 Fit and tighten screws -1 and 2- .

> Tightening torque 50 Nm (37 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tunnel strut
