Installing Intake-Air Distributor (V6 Turbo)

WARNING: This page is about a different variant/trim than selected.

Installation is performed in reverse order. Pay particular attention to the following: Observe tightening sequence -2 to 11- .
Screws -2 to 11- > Tightening torque 9 Nm (6.5 ftlb.) .

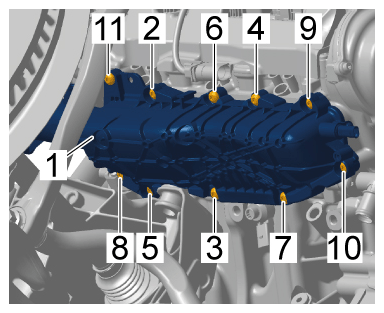

Fig 1: Intake-Air Distributor Screws Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for intake-air distributor screws
