Installing Left Throttle Housing

Information

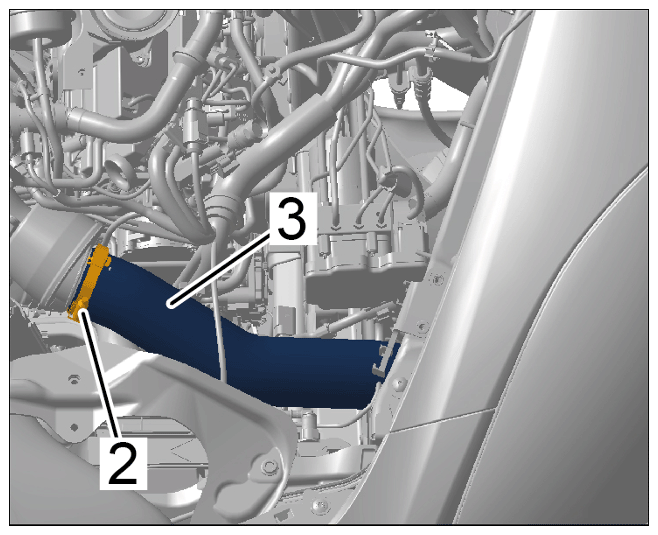

During installation, make sure that the clamp -2-  is positioned correctly on the charge air hose -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Charge air hose

1. Installation is performed in reverse order. Pay particular attention to the following Replace sealing ring and clean the sealing face.

   Tightening torque for clamp securing charge air hose to turbocharger: > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.3 ftlb.)

   Tightening torque for clamp securing charge air hose to pressure pipe on throttle housing: > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.3 ftlb.)

   Tightening torque for screws securing pressure pipe to throttle housing: > Tightening torque 8 Nm (6 ftlb.)

   Tightening torque for screws on throttle housing: > Tightening torque 7 Nm (5 ftlb.)
