Preliminary Work

WARNING: This page is about a different variant/trim than selected.

Remove engine cover.
> 108319 REMOVING AND INSTALLING ENGINE COVER (DESIGN COVER) (V6 TURBO)

> 108319 REMOVING AND INSTALLING ENGINE COVER (DESIGN COVER) (V8 BITURBO)

Loosen front apron.

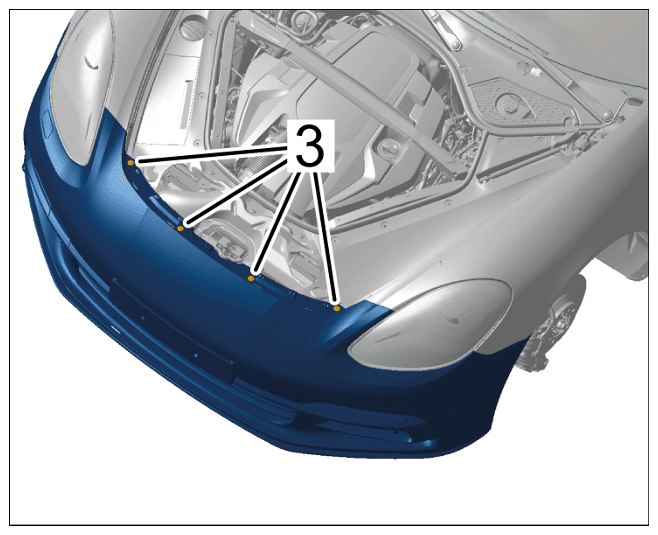

2.1 Unscrew screws -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing front screw at the top

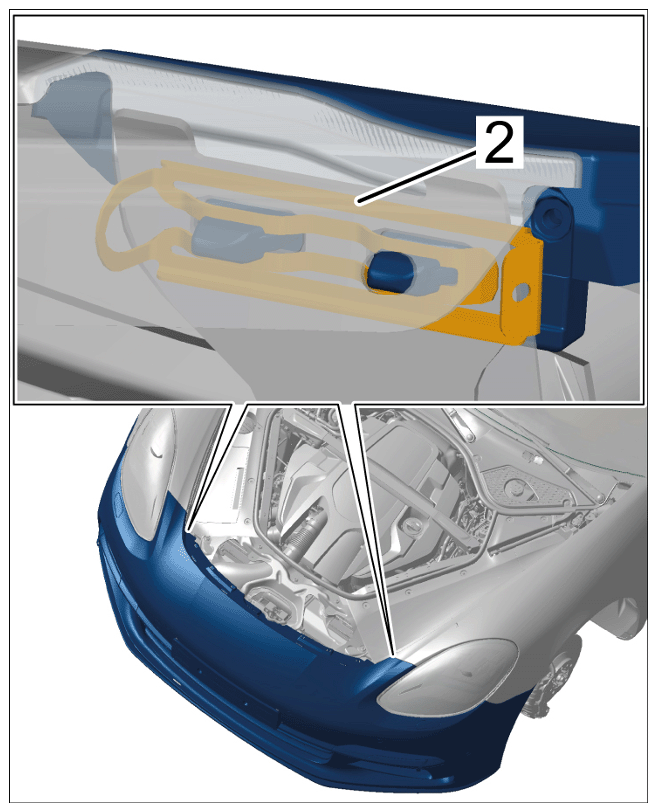

2.2 Pull safety clips -2- at the left and right off the guide pins using > T10118 - assembly tool .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pulling off safety clips

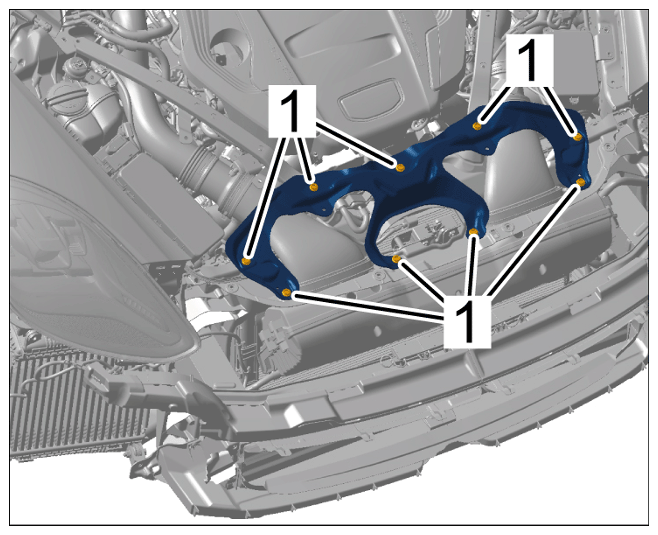

Unscrew screws using > VAS 6928 - Socket wrench set, 39-piece and remove reinforcement.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing reinforcement
