Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

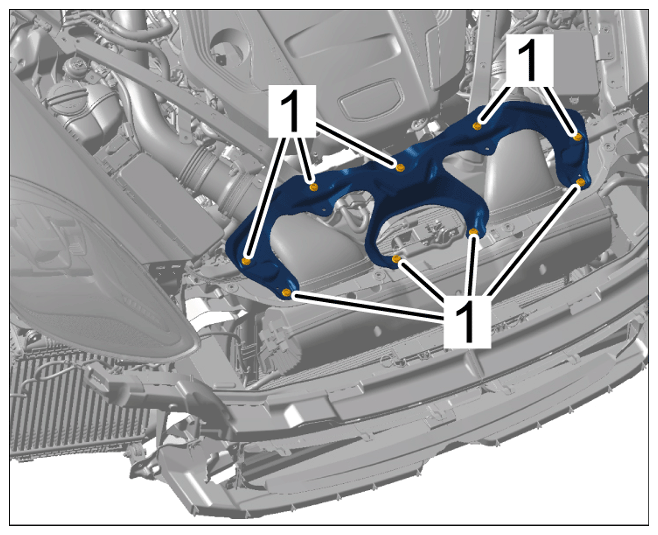

| Screw securing reinforcement to module carrier | Item 1 | Tightening torque | 20 Nm (15 ftlb.) | ||
|
Reinforcement on module carrier |
|||||
| Air-cleaner cowl to air cleaner | Tightening torque | 5 Nm (3.5 ftlb.) | |||
| Screw securing air cleaner housing to lock carrier | M6 x 14 | Tightening torque | 4.5 Nm (3.25 ftlb.) |
